Keystone 120W LED Wall Pack with Color Select Technology and 0-10V Dimming

Keystone 120W LED Wall Pack with Color Select Technology and 0-10V Dimming

(No reviews yet) Write a Review

Model: KT-WPLED120-L1-8CSB-VDIM
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$384.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

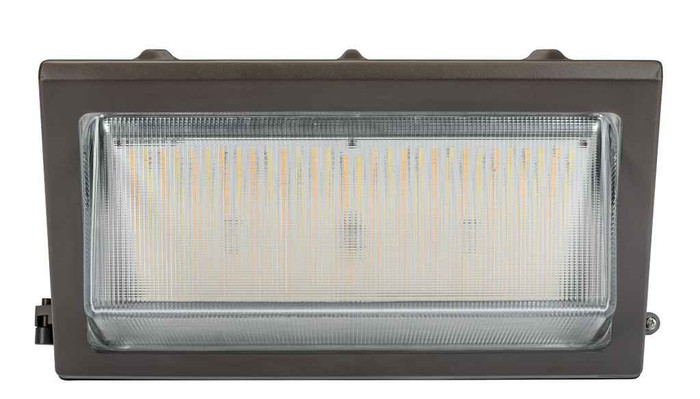

Keystone 120W LED Wall Pack with Color Select Technology and 0-10V Dimming

Professional LED wall pack lighting with selectable color temperature and advanced dimming control

The Keystone 120W LED Wall Pack delivers professional-grade exterior lighting with innovative Color Select technology, allowing field-selectable color temperatures of 3000K, 4000K, and 5000K. This versatile wall pack features 0-10V dimming capability, bronze housing construction, and integrated photocell sensor for automatic operation. With 16,900 lumens output and 120-277V input voltage compatibility, this fixture provides reliable illumination equivalent to a 400W metal halide while offering superior energy efficiency and 50,000-hour rated life.

Professional Features & Benefits

  • 120W LED Power: Delivers high-efficiency lighting with 16,900 lumens output while consuming significantly less energy than traditional fixtures
  • Color Select Technology: Field-selectable color temperatures (3000K/4000K/5000K) provide optimal lighting customization for any application
  • 0-10V Dimming: Professional dimming control allows precise light level adjustment for energy savings and lighting management
  • Bronze Housing: Durable bronze finish provides weather resistance and professional appearance for long-term exterior applications
  • Integrated Photocell: Automatic daylight sensing ensures efficient operation with hands-free on/off control
  • 50,000-Hour Rated Life: Extended LED lifespan reduces maintenance costs and ensures reliable long-term performance
  • 10-Year Limited Warranty: Comprehensive warranty coverage demonstrates manufacturer confidence in product quality and reliability

Technical Specifications

  • Accessory Device: No
  • Cec T20: No
  • Cri: >80
  • Dimming: 0-10V
  • Dlc: No
  • Dlc Premium: Yes
  • Energy Star: No
  • Housing Color: Bronze
  • Input Voltage: 120-277
  • Led Module Included: No
  • Legacy Equivalent: 400W MH
  • Lumens: 16900
  • Nominal Size: Large Housing
  • Not Suitable For Sale In California: No
  • Power: 120
  • Product Weight: 15.12 lbs
  • Rated Life Hours: 50000
  • Selectable Color Temperature: 3000/4000/5000
  • Sensor Type: Photocell
  • T24 Ja8: No
  • Ul: No
  • Warranty Years: 10 Year Limited
  • Wireless Control: No

Professional Applications

  • Commercial Building Perimeter Lighting
  • Industrial Facility Security Lighting
  • Retail Store Exterior Illumination
  • Office Complex Wall Mounting
  • Warehouse Loading Dock Areas
  • Multi-Unit Residential Properties
  • Municipal Building Lighting

Why Choose Keystone Quality?

Keystone delivers professional-grade LED lighting solutions with DLC Premium qualification and comprehensive 10-year limited warranty coverage. The bronze housing construction and 50,000-hour rated life ensure reliable performance in demanding exterior applications, while the integrated photocell sensor and 0-10V dimming capability provide advanced operational control for professional installations.

Manufacturer Resources

Product Specs

Accessory Device:
No
Cec T20:
No
Cri:
>80
Dimming:
0-10V
Dlc:
No
Dlc Premium:
Yes
Energy Star:
No
Housing Color:
Bronze
Input Voltage:
120-277
Led Module Included:
No
Legacy Equivalent:
400W MH
Lumens:
16900
Not Suitable For Sale In California:
No
Power:
120
Product Weight:
15.12 lbs
Rated Life Hours:
50000
Selectable Color Temperature:
3000/4000/5000
Sensor Type:
Photocell
T24 Ja8:
No
Ul:
No
Warranty Years:
10 Year Limited
Wireless Control:
No
Product Nominal Size:
Large Housing

Keystone KT-WPLED120-L1-8CSB-VDIM – Frequently Asked Questions

1) Will a Keystone 120W LED wall pack replace a 400W metal halide wall pack?
Yes. The KT-WPLED120-L1-8CSB-VDIM is built as a 400W metal halide replacement, putting out 16,900 lumens at 120 watts. On a retrofit you are dropping connected load from roughly 400W plus ballast draw to 120W on the same wall location, and there is no ballast to maintain afterward.
2) Can I run this LED wall pack on 208V or 277V, or is it 120V only?
It accepts any line voltage from 120 through 277V, so the same fixture works on 120, 208, 240 and 277V circuits. That is useful for a property manager standardizing one part number across buildings with different service voltages.
3) How do I set the color temperature on the Keystone Color Select wall pack?
Color temperature is field-selectable at the fixture between 3000K, 4000K and 5000K. You pick it during install rather than ordering a specific CCT, which means one stocked fixture can match 3000K warm exteriors on one property and 5000K security lighting on another. CRI is greater than 80 at any of the three settings.
4) Does this wall pack need a separate photocell, or is dusk-to-dawn control built in?
A photocell is integrated, so the fixture turns itself on at dusk and off at dawn with no external sensor, no timeclock and no control wiring. If you want scheduled dimming on top of that, the fixture also takes a 0-10V signal.
5) What control wiring does the 0-10V dimming on this wall pack require?
0-10V dimming means a low-voltage control pair pulled to the fixture in addition to line power, driven from a 0-10V dimmer, panel or building automation output. There is no wireless or networked control on this model, so if you want remote control without pulling control conductors, this is not the right fixture.
6) Does this Keystone wall pack qualify for utility rebates?
It is DLC Premium qualified, which is the tier most utility prescriptive rebate programs require for outdoor area and wall-mount LED. It is not Energy Star listed, so if a program specifically demands Energy Star rather than DLC, check the program's accepted list before you commit the job.
7) How heavy is this wall pack and what should I plan for mounting?
The fixture weighs 15.12 lbs and uses the large housing size in Keystone's wall pack range. At that weight you want solid backing, masonry anchors or a proper junction box rated for the load rather than a thin-wall plaster box, particularly on stucco or EIFS where the box alone carries the fixture.
8) Can the LED module be replaced when it fails, or is the whole wall pack disposable?
This is an integrated LED fixture, not a housing sold for a separate LED module, so there is no field-replaceable lamp or retrofit kit to stock. Maintenance planning is fixture replacement at end of life, and rated life is 50,000 hours, which is roughly 11 to 12 years running dusk-to-dawn on the photocell.
9) Is 16,900 lumens too much light for a small parking area or walkway?
Probably, and that's what the dimming is for. At 16,900 lumens this is a 400W metal halide class fixture meant for loading docks, building perimeters and large lots. For a walkway or a small rear entry you either dim it down over the 0-10V input or step down to a lower wattage wall pack in the same family rather than overlight the space and create glare complaints.
10) What is the Keystone part number for the 120W Color Select wall pack with 0-10V dimming?
Order KT-WPLED120-L1-8CSB-VDIM. The VDIM suffix is the 0-10V dimming version and 8CSB is the Color Select bronze configuration, so a number without VDIM will arrive non-dimming.
11) Will the bronze finish on this wall pack match the other fixtures on my building?
The housing is bronze, which is the most common exterior commercial wall pack finish and generally reads as a match alongside existing bronze metal halide and LED wall packs. No other housing color is offered on this model, so if your property is standardized on white or dark grey you'll need a different fixture.
