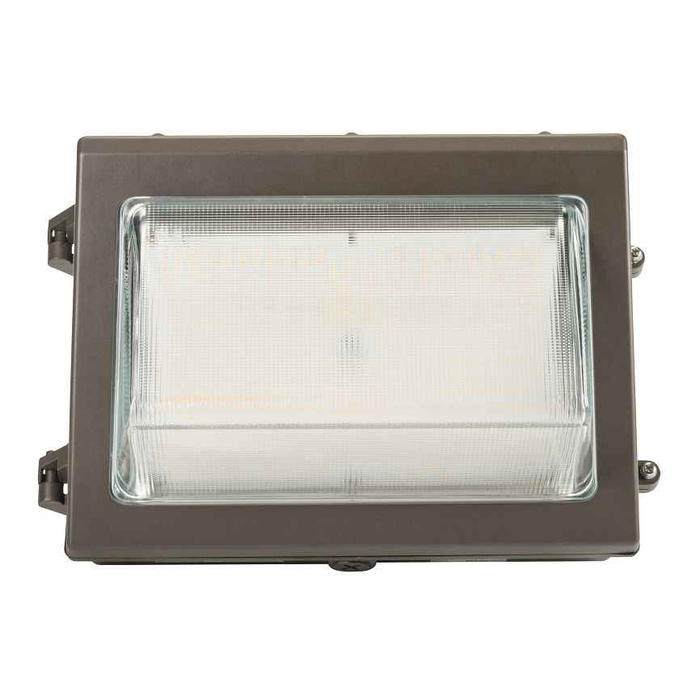

Keystone 55W LED Wall Pack with Color Select Technology and 0-10V Dimming

Keystone 55W LED Wall Pack with Color Select Technology and 0-10V Dimming

(No reviews yet) Write a Review

Model: KT-WPLED55-M1-8CSB-VDIM
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$268.47
$159.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Keystone 55W LED Wall Pack with Color Select Technology and 0-10V Dimming

Professional LED wall pack lighting with selectable color temperature and advanced dimming control

The Keystone 55W LED Wall Pack delivers professional-grade exterior lighting with innovative Color Select technology, allowing field-selectable color temperatures of 3000K, 4000K, and 5000K. This versatile wall-mounted fixture features 0-10V dimming capability, bronze housing construction, and integrated photocell sensor for automatic operation. With 7450 lumens output and 120-277V input voltage compatibility, this fixture provides reliable performance equivalent to a 250W metal halide while consuming significantly less energy.

Professional Features & Benefits

  • 55W Power Rating: Energy-efficient LED technology delivers substantial illumination while reducing operating costs compared to traditional lighting.
  • Color Select Technology: Field-selectable 3000K/4000K/5000K color temperatures provide flexibility to match specific lighting requirements and preferences.
  • 0-10V Dimming: Professional dimming control allows precise light level adjustment for enhanced energy savings and lighting management.
  • 7450 Lumens Output: High-performance LED array provides bright, uniform illumination equivalent to 250W metal halide fixtures.
  • Bronze Housing: Durable bronze finish construction ensures long-lasting performance and professional appearance in exterior applications.
  • Integrated Photocell: Built-in sensor provides automatic dusk-to-dawn operation for convenient and energy-efficient lighting control.
  • 10 Year Limited Warranty: Extended warranty coverage demonstrates manufacturer confidence in long-term reliability and performance.

Technical Specifications

  • Accessory Device: No
  • Cec T20: No
  • Cri: >80
  • Dimming: 0-10V
  • Dlc: No
  • Dlc Premium: Yes
  • Energy Star: No
  • Housing Color: Bronze
  • Input Voltage: 120-277
  • Led Module Included: No
  • Legacy Equivalent: 250W MH
  • Lumens: 7450
  • Mounting Method: Wall
  • Nominal Size: Medium Housing
  • Not Suitable For Sale In California: No
  • Power: 55
  • Product Weight: 10.25 lbs
  • Rated Life Hours: 50000
  • Selectable Color Temperature: 3000/4000/5000
  • Sensor Type: Photocell
  • T24 Ja8: No
  • Ul: No
  • Warranty Years: 10 Year Limited
  • Wireless Control: No

Professional Applications

  • Commercial Building Perimeter Lighting
  • Industrial Facility Security Illumination
  • Retail Store Exterior Lighting
  • Office Building Wall Mounting
  • Warehouse and Distribution Centers
  • Multi-Unit Residential Properties
  • Municipal and Government Facilities

Why Choose Keystone Quality?

Keystone delivers professional-grade LED lighting solutions with DLC Premium qualification and comprehensive 10 Year Limited warranty coverage. The bronze housing construction and 50,000-hour rated life ensure long-term durability and reliable performance in demanding exterior applications.

Manufacturer Resources

Product Specs

Accessory Device:
No
Cec T20:
No
Cri:
>80
Dimming:
0-10V
Dlc:
No
Dlc Premium:
Yes
Energy Star:
No
Housing Color:
Bronze
Input Voltage:
120-277
Led Module Included:
No
Legacy Equivalent:
250W MH
Lumens:
7450
Mounting Method:
Wall
Not Suitable For Sale In California:
No
Power:
55
Product Weight:
10.25 lbs
Rated Life Hours:
50000
Selectable Color Temperature:
3000/4000/5000
Sensor Type:
Photocell
T24 Ja8:
No
Ul:
No
Warranty Years:
10 Year Limited
Wireless Control:
No
Product Nominal Size:
Medium Housing

Keystone KT-WPLED55-M1-8CSB-VDIM – Frequently Asked Questions

1) How do I set the color temperature on a Keystone Color Select wall pack, and can it be changed after install?
Color temperature is field selectable at 3000K, 4000K or 5000K on the fixture itself, so one unit covers all three. That means you can stock a single SKU and set 3000K on hospitality or multi-family exteriors and 5000K on warehouse and security applications. Because the selection is made on the fixture, it can be reset later during a relamp or a site walk rather than reordering.
2) Does this wall pack need a separate photocell, or is dusk-to-dawn built in?
A photocell is integrated, so the fixture switches itself on at dusk and off at dawn with no external sensor, no timeclock and no contactor needed. Wire it to an unswitched circuit so the photocell controls the load. There is no wireless or networked control on this model, so if you need a central lighting management system you will want a different fixture family.
3) What control wiring does the 0-10V dimming on this Keystone wall pack require?
Dimming is 0-10V, which means a pair of low voltage control conductors run from a 0-10V dimmer or lighting control panel to the fixture in addition to the line voltage feed. If you are not dimming, the fixture still operates on line power alone and the integrated photocell handles on/off. Plan the control pair at rough-in, since pulling it later into exterior conduit is the expensive part.
4) Do I need to order LED modules or lamps separately for this wall pack?
No lamps or separate LED modules to buy. The 55W Keystone wall pack is an integrated LED luminaire rated for 50,000 hours, and it is not an accessory device, so what you order is a complete fixture. You supply the mounting box, conduit fittings and the 0-10V control pair if you are dimming it.
5) What is the exact part number to order this Keystone 55W Color Select wall pack?
Order Keystone model KT-WPLED55-M1-8CSB-VDIM. That single part number carries the medium housing, bronze finish, selectable 3000K/4000K/5000K output, integrated photocell and 0-10V dimming, so there are no finish or CCT options to specify on the purchase order.
6) Is the color quality good enough for retail and hospitality entrances, or is this a security-only fixture?
CRI is greater than 80, which is acceptable for retail frontage, hotel entries and office perimeters where you care how paint, signage and vehicle colors read. Paired with the 3000K setting it gives a warmer entrance look; at 5000K it reads as a security light. Rated life is 50,000 hours.
7) Will this bronze wall pack match the other fixtures on my building?
The housing is bronze, which is the common dark finish on commercial exterior wall packs and generally blends with existing bronze or dark brown fixture runs. Bronze is the only housing color offered on model KT-WPLED55-M1-8CSB-VDIM, so if your standard is white or architectural black you will need a different model.
