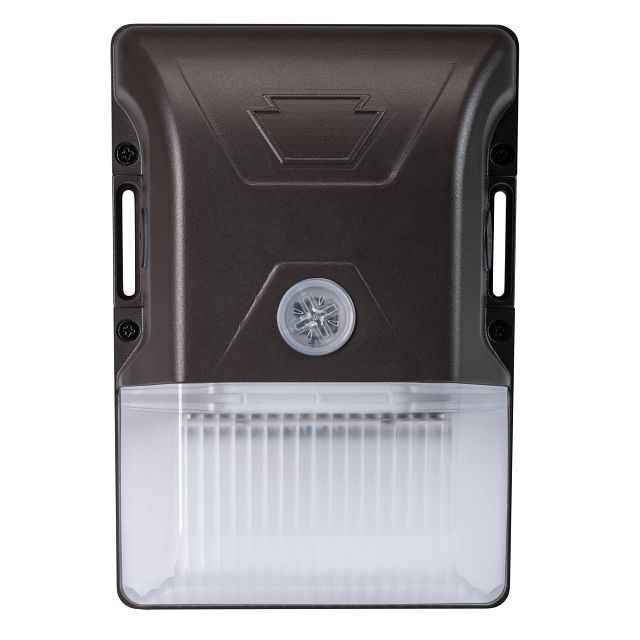

Keystone 20W LED Wall Pack with Color Select Technology and 0-10V Dimming

Keystone 20W LED Wall Pack with Color Select Technology and 0-10V Dimming

(No reviews yet) Write a Review

Model: KT-WPLED20-S1-8CSB-VDIM
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$157.56
$73.55
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Keystone 20W LED Wall Pack with Color Select Technology and 0-10V Dimming

Professional LED wall pack lighting with selectable color temperature and advanced dimming control

The Keystone 20W LED Wall Pack delivers professional-grade exterior lighting with innovative Color Select technology, allowing field-selectable color temperatures of 3000K, 4000K, and 5000K. This versatile wall-mounted fixture features 0-10V dimming capability, bronze housing construction, and integrated photocell sensor for automatic operation. With 2600 lumens output and 50,000-hour rated life, this energy-efficient LED solution replaces traditional 70W metal halide fixtures while providing superior performance and reliability.

Professional Features & Benefits

  • 20W LED Power: Energy-efficient operation delivering 2600 lumens while consuming significantly less power than traditional lighting solutions.
  • Color Select Technology: Field-selectable color temperatures (3000K/4000K/5000K) provide optimal lighting customization for any application without inventory complexity.
  • 0-10V Dimming: Professional dimming control allows precise light level adjustment for enhanced energy savings and lighting management.
  • Bronze Housing: Durable bronze finish provides weather resistance and professional appearance for long-term exterior installations.
  • Integrated Photocell: Automatic daylight sensing ensures efficient operation by turning lights on at dusk and off at dawn.
  • DLC Premium Listed: Qualifies for utility rebates and demonstrates superior energy efficiency performance standards.
  • 50,000-Hour Rated Life: Extended operational life reduces maintenance costs and ensures reliable long-term performance.

Technical Specifications

  • Accessory Device: No
  • Cec T20: No
  • Cri: >80
  • Dimming: 0-10V
  • Dlc: No
  • Dlc Premium: Yes
  • Energy Star: No
  • Housing Color: Bronze
  • Input Voltage: 120-277
  • Led Module Included: No
  • Legacy Equivalent: 70W MH
  • Lumens: 2600
  • Mounting Method: Wall
  • Nominal Size: Small Housing
  • Not Suitable For Sale In California: No
  • Power: 20
  • Product Weight: 2.5 lbs
  • Rated Life Hours: 50000
  • Selectable Color Temperature: 3000/4000/5000
  • Sensor Type: Photocell
  • T24 Ja8: No
  • Ul: No
  • Warranty Years: 5
  • Wireless Control: No

Professional Applications

  • Commercial Building Perimeter Lighting
  • Retail Store Exterior Security Lighting
  • Office Complex Walkway Illumination
  • Industrial Facility Area Lighting
  • Multi-Unit Residential Properties
  • Professional Office Building Entrances
  • Emergency Services Facility Lighting

Why Choose Keystone Quality?

Keystone delivers reliable LED lighting solutions backed by a comprehensive 5-year warranty and DLC Premium listing for superior energy efficiency. The bronze housing construction and 50,000-hour rated life ensure long-term durability and performance in demanding exterior applications.

Manufacturer Resources

Product Specs

Accessory Device:
No
Cec T20:
No
Cri:
>80
Dimming:
0-10V
Dlc:
No
Dlc Premium:
Yes
Energy Star:
No
Housing Color:
Bronze
Input Voltage:
120-277
Led Module Included:
No
Legacy Equivalent:
70W MH
Lumens:
2600
Mounting Method:
Wall
Not Suitable For Sale In California:
No
Power:
20
Product Weight:
2.5 lbs
Rated Life Hours:
50000
Selectable Color Temperature:
3000/4000/5000
Sensor Type:
Photocell
T24 Ja8:
No
Ul:
No
Warranty Years:
5
Wireless Control:
No
Product Nominal Size:
Small Housing

Keystone KT-WPLED20-S1-8CSB-VDIM – Frequently Asked Questions

1) Will the Keystone 20W LED wall pack run on 277V in a commercial building?
Yes. The KT-WPLED20-S1-8CSB-VDIM wall pack accepts 120-277V input, so it drops onto 120V, 208V, 240V or 277V circuits without a separate driver or voltage-specific model. That's the main reason a single part number can cover a mixed-voltage property.
2) Can one 20W LED wall pack replace a 70W metal halide fixture?
That's the intended swap. The 20W Keystone wall pack is rated as a 70W metal halide equivalent, putting out 2600 lumens at 20 watts. You also lose the metal halide warm-up and lumen depreciation, and the LED is rated for 50,000 hours.
3) Do I have to order a specific color temperature, or can I set it on site?
Set it on site. Color Select lets the installer pick 3000K, 4000K or 5000K at the fixture, so one part number covers warm entry lighting and cooler security lighting. For property managers stocking spares, that means a single SKU matches whatever the other buildings were set to.
4) Is this wall pack dimmable, and what kind of dimming control does it take?
It takes 0-10V dimming, which means a low-voltage control pair run to the fixture from a 0-10V driver-compatible dimmer, panel, or building control system. It is not a line-voltage (TRIAC/ELV) dimming fixture, so a standard residential wall dimmer will not work. There is no wireless control built in, so dimming has to be hard-wired.
5) Does this wall pack need a separate photocell or time clock to switch at dusk?
No. A photocell is built into the fixture, so it turns on at dusk and off at dawn on its own. You can feed it from an unswitched circuit. Note that a line-voltage photocell upstream plus the integral one can fight each other, so pick one control point.
6) Does the Keystone 20W wall pack qualify for utility rebates?
It is DLC Premium listed, which is the tier most utility programs require for their higher exterior-lighting rebates. It is not Energy Star listed, which generally does not apply to commercial wall packs anyway. Your utility will want the model number KT-WPLED20-S1-8CSB-VDIM on the application.
7) How heavy is this wall pack, and will it mount to an existing exterior junction box?
The fixture weighs 2.5 lbs and is a wall-mount, small-housing design, so weight is not a limiting factor on a standard exterior box or wall surface. The small housing also makes it a better fit than a full-size wall pack when you're replacing a 70W metal halide unit on a narrow pilaster or beside a door frame.
8) Do I need to buy an LED module or lamp separately for this wall pack?
No lamp or module purchase is part of the install decision here, and the fixture is not an accessory device or retrofit kit, it is a complete wall-mounted luminaire. You wire it up, select the color temperature, and run a 0-10V control pair if you want dimming.
9) Is the color rendering good enough for retail entrances and security camera coverage?
CRI is greater than 80, which is the normal commercial benchmark for exterior and entry lighting and is adequate for camera color reproduction at building perimeters. Pair that with the 4000K or 5000K Color Select setting if you want the crisper look most security applications are specified at.
10) What finish does this Keystone wall pack come in, and is there another color option?
Bronze housing, and bronze is the only finish offered on this model. It is the standard exterior commercial finish, so it will generally blend with existing bronze wall packs and sconces already on a building perimeter.
