Metallics JFMP22 1/4-20 x 3/8 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.24
$0.24

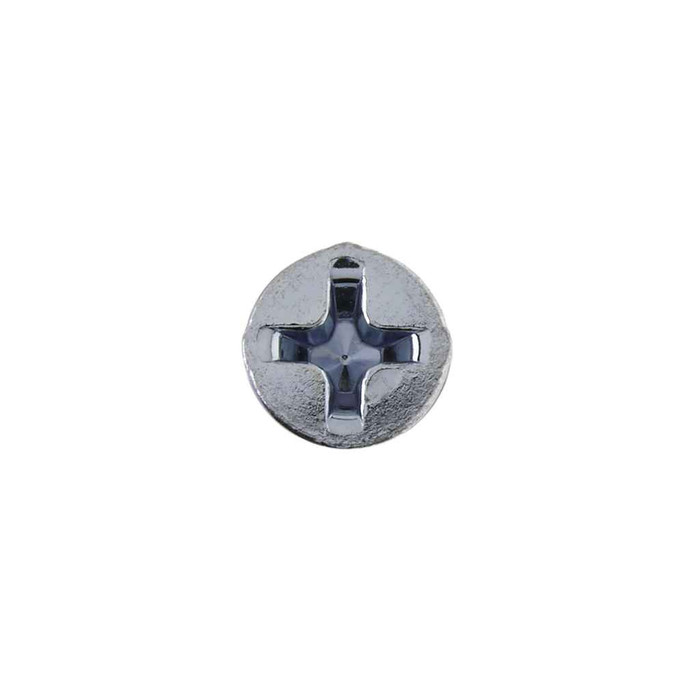

Metallics JFMP22 1/4-20 x 3/8 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JFMP22 1/4-20 x 3/8 in. Flat Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFMP22
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.24
$0.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 3/8 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Zinc yellow screws are popular in electronics applications.
    • 1/4-20 Diameter, 3/8" Length
    • Steel Zinc Material
    • Flat head with Phillips Drive

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.131 - 0.153 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.442 - 0.477 in.
Fastener Length:
8-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Gaging Diameter:
0.424
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.16
Phillips Recess Diameter:
0.276
Phillips Recess Width:
0.036
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.63 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.029 - 0.050 Above
Sub Division:
Electrical-E H2
Tensile Strength:
1900 lb minimum
Thread Per Inch:
20
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFMP22 – Frequently Asked Questions

1) Will a 1/4-20 x 3/8 in. flat head machine screw thread into a standard panel or box with 1/4-20 tapped holes?
Yes. The JFMP22 is a 1/4-20 UNC thread cut to ANSI/ASME B1.1, 20 threads per inch, so it mates with any standard 1/4-20 tapped hole or 1/4-20 nut. At 3/8 in. long it is a short screw, so it suits thin sheet metal and tapped-boss work; if your material plus the tapped depth exceeds about 3/8 in. of engagement you need a longer length.
2) Are these screws Buy American or ARRA compliant for a government job?
No. The JFMP22 is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. If your contract carries domestic sourcing requirements, this part will not satisfy them.
3) What driver bit do I need for the Metallics JFMP22 machine screws?
A #3 Phillips bit. The flat head on the JFMP22 takes a Phillips recess 0.276 in. in diameter and 0.160 in. deep, so a #2 bit will cam out and chew the recess under torque. Keep a #3 on the driver for these.
4) How many 1/4-20 x 3/8 flat head Phillips screws come in a jar?
The JFMP22 ships as a jar of 100, and the jar is the minimum order quantity. The packed jar weighs 0.63 lbs. Plan the count per jar when you are kitting out a job rather than ordering by the piece.
5) Is zinc plated steel okay for outdoor or wet locations?
The JFMP22 is zinc plated carbon steel (AISI 1006-1022 material), which is a mild corrosion barrier meant for dry interior service such as enclosures, panels and indoor mechanical work. For exterior, damp or washdown locations, specify a stainless machine screw in the same 1/4-20 x 3/8 size instead.
6) Do these Metallics machine screws meet a dimensional spec I can put on a submittal?
Yes. Head and recess geometry conform to ASME B18.6.3-1998 for flat head machine screws, threads to ANSI/ASME B1.1 UNC, and the steel to AISI 1006-1022. Gaging diameter is 0.424 with protrusion 0.029 to 0.050 above gage. That is enough to cite on a submittal for a tapped 1/4-20 countersunk connection.
