Metallics JFMP4 8-32 x 1/4 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.10
$0.10

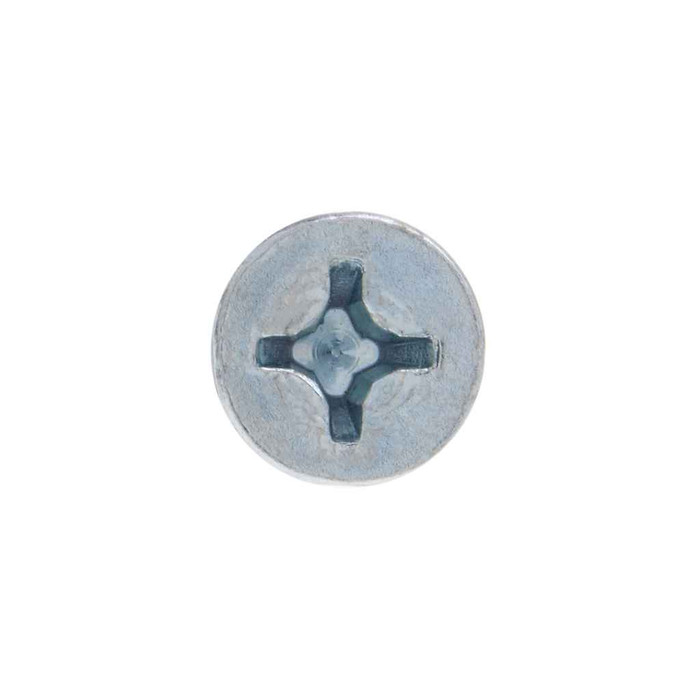

Metallics JFMP4 8-32 x 1/4 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JFMP4 8-32 x 1/4 in. Flat Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFMP4
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.10
$0.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8-32 x 1/4 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

  • Features

    • Flat head with Phillips Drive
    • Steel Zinc Material
    • Zinc yellow screws are popular in electronics applications.
    • 8-32 Diameter, 1/4" Length

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.084 - 0.1 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.285 - 0.312 in.
Fastener Length:
4-Jan
Gaging Diameter:
0.267
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.11
Phillips Recess Diameter:
0.182
Phillips Recess Width:
0.03
Product Group:
Fasteners
Protrusion Gaging Diameter:
0.023 - 0.039 Above
Sub Division:
Electrical-E H2
Tensile Strength:
850 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFMP4 – Frequently Asked Questions

1) Will the Metallics JFMP4 8-32 screw thread into a standard electrical box or device yoke?
Yes. The JFMP4 is an 8-32 UNC machine screw, 32 threads per inch, cut to ANSI/ASME B1.1. That is the same thread used on receptacle and switch yokes, box ears, and cover plate tapped holes, so it mates with standard 8-32 tapped hardware. At 1/4 inch long it is short, so it is for thin stack-ups like mounting a device or plate directly to tapped steel, not for reaching through spacers.
2) Do these Metallics screws meet Buy American or ARRA requirements for a government job?
No. The JFMP4 is not Buy American compliant and is not ARRA compliant, with multiple countries of origin. On a federally funded project with domestic sourcing language, these will not qualify and a domestic fastener has to be specified.
3) How strong are these 8-32 zinc machine screws, and can I use them structurally?
The JFMP4 carries an 850 lb minimum tensile rating with a hardness of Rockwell B70 to B100, made from AISI 1006-1022 low carbon steel. That is standard commercial machine screw material for device mounting, panel hardware and cover plates. It is not a graded structural bolt, so for load bearing connections specify a graded cap screw instead.
4) Is zinc plated steel OK for outdoor or damp locations?
These are zinc plated carbon steel, which is an indoor corrosion finish. In wet, coastal or washdown locations the plating gives up and the steel rusts, so specify stainless for those openings. For dry interior electrical work, panels, boxes and enclosures, the zinc finish is the normal choice.
5) Will these interchange with the 8-32 flat head screws already in my panel stock?
They are dimensioned to ASME B18.6.3-1998 with threads to ANSI/ASME B1.1, so head and thread geometry match any other 8-32 x 1/4 flat head Phillips machine screw built to the same standards. Gaging diameter is 0.267 with protrusion 0.023 to 0.039 above gage. The one thing to match is finish, since zinc plated and stainless will look different side by side on exposed plates.
6) How are the JFMP4 screws packaged and what is the minimum order?
They ship in a jar of 100, which is also the order minimum. That is the standard MRO shop count, so a service van or panel shop can stock a jar rather than counting loose pieces.
