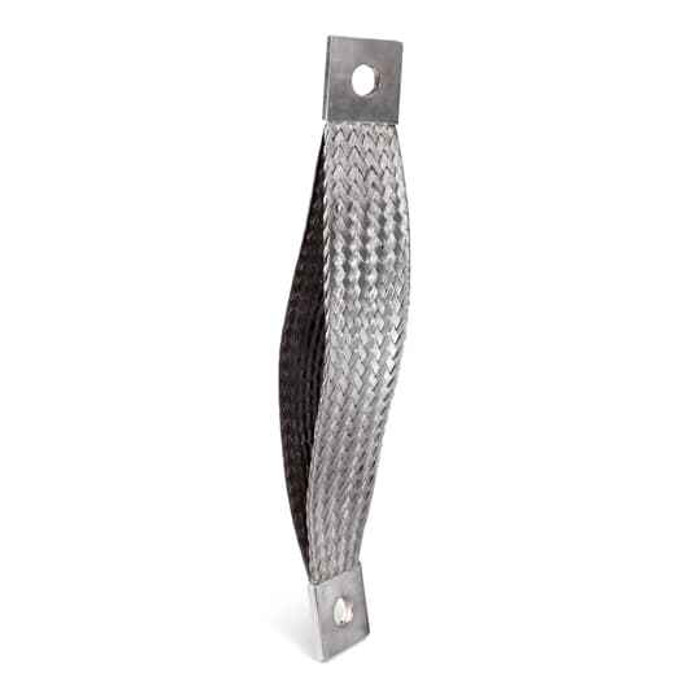

1H JMPR BRD ASY2 500 H9/16x2 L14
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Non-Insulated
- Product Group:
- Grounding & Bonding
- Product Net Depth Length:
- 14 in355.6 mm
- Product Type:
- Extra-Flexible Jumper Braid
- Selling Unit Of Measure:
- each
- Standards:
- NEMA
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn FBE1H050A1-14 – Frequently Asked Questions
1) How long is the Blackburn FBE1H050A1-14 jumper braid?
The FBE1H050A1-14 braid assembly is 14 inches long (355.6 mm). That length is the overall run between terminations, so measure your bonding path plus some slack for movement before committing, since a braid is sold as a fixed made-up assembly rather than cut to length.
2) Is the Blackburn FBE1H050A1-14 bonding jumper insulated?
No. It is a non-insulated extra-flexible braid, so the conductor is bare along its full length. Keep it clear of live parts and sharp edges, and do not rely on it for any separation from energized conductors in the enclosure.
3) Why use a flexible braided jumper instead of a solid or stranded ground wire?
An extra-flexible braid is for bonding across something that moves or vibrates: hinged enclosure doors, equipment on isolation mounts, expansion joints in raceway, generator and motor frames. Solid or stranded conductor work-hardens and eventually cracks at those points. The Blackburn FBE1H050A1-14 is a made-up braid assembly with terminations at both ends, so you bolt it in rather than crimping lugs in the field. For a static ground run, ordinary copper conductor is the cheaper and normal choice.
4) Does the Blackburn FBE1H050A1-14 meet NEMA requirements, and is it made in the USA?
It is built to NEMA standards and manufactured in the United States, which matters for federal, institutional, and Buy American specified jobs where country of origin has to be documented on the submittal.
5) Is the Blackburn FBE1H050A1-14 sold individually or in a pack?
Each. One braid assembly per unit, so order the exact count of bonding points you have rather than a carton quantity. The ordering number is FBE1H050A1-14.
