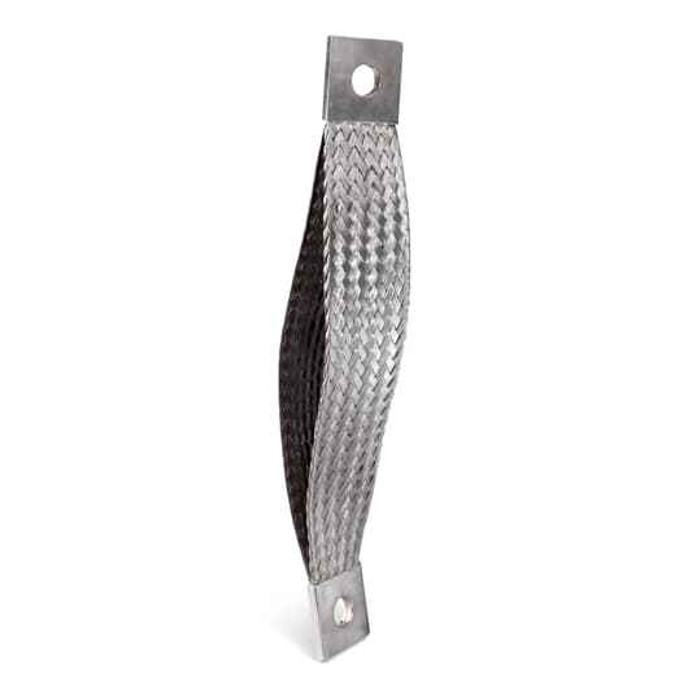

1H JMPR BRD ASY2 500 H7/16x2 L9
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Non-Insulated
- Product Group:
- Grounding & Bonding
- Product Net Depth Length:
- 9 in228.6 mm
- Product Type:
- Extra-Flexible Jumper Braid
- Selling Unit Of Measure:
- each
- Standards:
- NEMA
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn FBE1H050A3-9 – Frequently Asked Questions
1) How long is the Blackburn FBE1H050A3-9 jumper braid?
The FBE1H050A3-9 braid assembly measures 9 inches (228.6 mm) in length. That length is the overall braid assembly dimension, so allow for it when you lay out the bonding path between the two connection points.
2) Is this Blackburn bonding jumper braid insulated?
No. The FBE1H050A3-9 is a non-insulated extra-flexible braid, so the conductor is bare along its length. Keep that in mind where the braid could contact an adjacent energized part or a dissimilar metal surface, and route or sleeve it accordingly.
3) Why use an extra-flexible braid jumper instead of a standard bonding cable?
A braid jumper is what you reach for when the two bonded parts move relative to each other, or where vibration would work-harden a solid or stranded conductor. The FBE1H050A3-9 is an extra-flexible braid grounding assembly, so it flexes repeatedly across the joint, typical on hinged enclosure doors, equipment frames, raceway expansion joints and rotating or sliding assemblies. For a fixed run between two stationary points, an ordinary bonding conductor and lug is the simpler choice.
4) Does the Blackburn FBE1H050A3-9 come with the terminals already attached?
Yes, it ships as a complete grounding assembly with the braid and its terminations as one factory-made unit, so there is no crimping or lug attachment to do in the field. It is sold each, so order one per bonding point you need to make.
5) Does this Blackburn jumper braid meet a recognized standard, and where is it made?
NEMA is the standard referenced for the FBE1H050A3-9, and it is manufactured in the United States. The US origin matters on federally funded and Buy American work, where domestic sourcing has to be documented for grounding and bonding components.
6) What is the exact part number to order for this Blackburn 9 inch braid jumper?
Order Blackburn FBE1H050A3-9. That single part number covers the complete 9 inch non-insulated braid assembly, and it is the number to quote when matching what is already installed, since Blackburn's braid family runs through many length and termination variations that differ only in the suffix.
