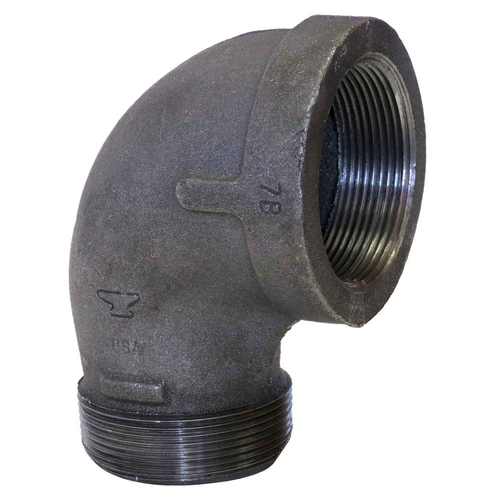

2 GALV MI 90 STR ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- MPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2
- Size 2:
- 2
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° Elbow
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 2.73 lbs
ASC Engineered Solutions 311017206 – Frequently Asked Questions
1) Is this ASC 2 inch galvanized 90 degree elbow female on both ends, or is one end male?
It's a street elbow, so the ends are different: one end is FPT (female pipe thread) and the other is MPT (male pipe thread). That lets you turn 90 degrees right off a fitting without adding a nipple. If you need female threads on both ends, you want a standard 90 elbow instead, not the street pattern.
2) Does this ASC fitting meet the ASME B16.3 spec called out on my drawing?
Yes. Its dimensions and pressure rating are both to ASME B16.3, the standard for malleable iron threaded fittings, and it is standard (STD) class rather than extra heavy. If your spec calls for Class 300 extra heavy, this is not the right fitting.
3) Is this elbow hot dip galvanized or just plated?
The coating is hot dip galvanizing to ASTM A-153, the hardware spec for hot dipped zinc on iron and steel. That's the coating you want for wet service, outdoor runs, and galvanized pipe systems where a plated finish would give up too early.
