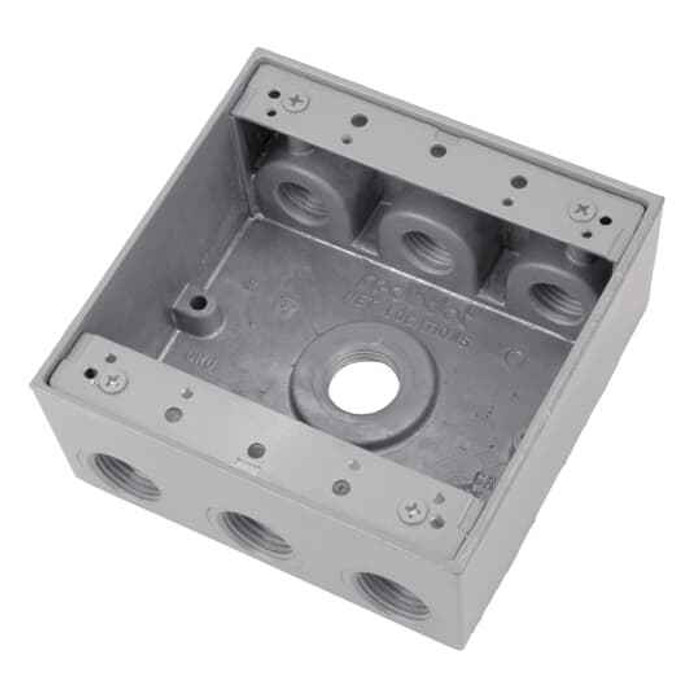

2-GANG UNIV WP BX 31.8CU 7HOLE 10PK
Manufacturer Resources
Product Specs
- Application:
- Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- Product Group:
- Electrical Boxes
- Product Type:
- Device Boxes, Covers & Accessories
- Product type2:
- Weatherproof boxes
- Selling Unit Of Measure:
- each
- Special Functions:
- Clean cover edges help provide good gasket sealing
- Standards:
- UL E28688
- Volume:
- 30.3 cu.. in
- Department:
- Electrical
- Product Subgroup:
- Outlet Boxes
- Product Color:
- Silver
Red Dot 2IH7-1 – Frequently Asked Questions
1) Can the Red Dot 2IH7-1 weatherproof box be used outdoors in the rain?
Yes. The Red Dot Dry-Tite line of boxes and covers is made to protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations, so the 2IH7-1 is suitable for exposed exterior walls as well as interior damp areas like garages and wash-down rooms. Pair it with a Dry-Tite weatherproof cover and gasket to keep the rating intact once devices are installed.
2) How many devices will the Red Dot 2IH7-1 box hold, and how many conduit openings does it have?
It is a 2-gang box, so it takes two wiring devices side by side (for example a receptacle and a switch, or two duplex receptacles). The 2IH7-1 is drilled with seven threaded hub openings, which lets you bring conduit in from multiple sides, back, top, bottom or ends, and plug the ones you do not use.
3) Is the Red Dot 2IH7-1 outlet box UL listed for an inspected job?
It carries UL file E28688. If your inspector wants documentation for an exterior device box, that file number is what to reference on the submittal.
4) Will a standard weatherproof cover seal properly on this Red Dot box?
The box is machined with clean cover edges so a gasket seats flat and seals, which is the part that usually fails on a cast box with a rough or paint-filled flange. Use a Dry-Tite cover and gasket sized for a 2-gang opening.
5) What color is the Red Dot 2IH7-1 box, and can it be painted to match a wall?
It ships silver, the natural finish of the cast body. Field painting is common on exterior installs; keep paint off the cover flange and gasket surface so the seal still seats cleanly.
