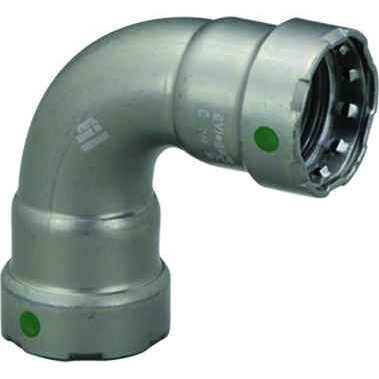

25205 Viega MegaPress 90° elbow Smart Connect technology Carbon steel, 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Country Of Origin:
- Made in USA
- Material Type:
- Carbon Steel
- Product Dimension:
- 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 3.268"
- Product Height:
- 1.492"
- Product Weight:
- 0.503 lbs
- Product Width:
- 3.268"
Viega 25205 – Frequently Asked Questions
1) Will the Viega MegaPress 25205 elbow work on 3/4 inch black iron pipe?
The MegaPress 25205 is a 3/4 inch by 3/4 inch carbon steel 90 degree elbow with press ends on both sides, so it goes onto 3/4 inch black iron (carbon steel) pipe. Both ends are press connections (P1 x P2), not threaded, so you press it directly onto cut and deburred pipe rather than threading it.
2) Do I need a threaded end or does MegaPress replace threading the pipe?
Both ends of the 25205 elbow are press (P1 x P2), which is the point of MegaPress: you cut the carbon steel pipe, deburr, mark depth, and press with the right jaw instead of cutting threads. No threading, no torch, no dope. If the run you are tying into is already threaded, you need a press-by-thread adapter at that point, because this fitting gives you two press ends only.
3) Can I use this carbon steel MegaPress elbow on a copper line?
No. The 25205 is a carbon steel fitting sized for 3/4 inch carbon steel pipe. For copper tube you need a copper press system fitting instead; carbon steel press ends are not dimensioned for copper tube and mixing the two invites a joint that will not seal.
4) How much space does the Viega 25205 90 degree elbow take up in a tight chase?
The 25205 measures 3.268 by 3.268 by 1.492 inches and weighs 0.503 lbs. Plan the run so you have jaw clearance around the fitting as well, since a press tool head needs working room on each socket.
5) What does Smart Connect do on this Viega elbow?
Smart Connect is Viega's unpressed-connection feature built into the MegaPress 25205 elbow. During pressure testing an unpressed joint leaks noticeably, so a fitting that got skipped shows itself before the system is put in service rather than after the ceiling is closed. It is a jobsite safeguard, not a substitute for pressing every joint.
6) Is the Viega 25205 MegaPress fitting made in the USA?
Yes, the 25205 carbon steel press elbow is made in the USA, which matters on public and institutional jobs carrying domestic sourcing requirements.
