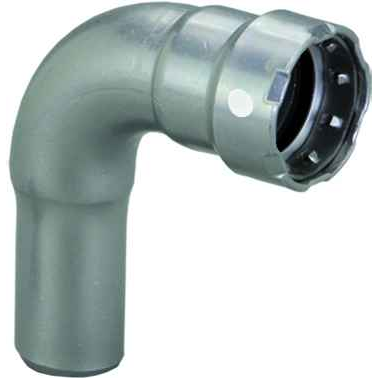

84880 Viega MegaPress 90° street elbow Smart Connect technology Carbon steel, 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FTG
- Country Of Origin:
- United States
- Material Type:
- Carbon Steel
- Product Dimension:
- 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Street Elbows
- Product Type:
- 90° Street Elbow
- Product Length:
- 3.622"
- Product Height:
- 1.496"
- Product Weight:
- 0.522 lbs
- Product Width:
- 3.047"
- Product Material:
- Carbon steel
Viega 84880 – Frequently Asked Questions
1) Is the Viega 84880 MegaPress elbow made of carbon steel or copper?
Carbon steel. The 84880 is a MegaPress carbon steel fitting, so it is intended for black iron and carbon steel pipe systems, not for copper tube. For copper you want a copper press fitting instead.
2) What is Smart Connect on the Viega MegaPress 84880 and why does it matter on a punch list?
Smart Connect is the feature that lets an unpressed connection leak during pressure testing, so an installer can find the joint that was missed before the system is signed off. On a large carbon steel run with dozens of 90s, that is the difference between finding a miss at test and finding it in a finished ceiling.
3) How much clearance do I need to fit a 3/4 inch MegaPress 90 street elbow in a tight chase?
The 84880 measures 3.622 by 3.047 by 1.496 inches, so plan the chase around those overall dimensions plus room to get the press jaw around the socket. The street end helps here too, since it eliminates the nipple a standard P x P elbow would need when coupling directly to another fitting.
4) Do I need to thread or weld pipe to use the Viega 84880 elbow?
No. MegaPress is a press connection, so the 3/4 inch carbon steel pipe is cut, deburred, marked for insertion depth and pressed with the proper jaw. No threading, no welding, no hot work permit. The street end means one side goes into another fitting rather than onto pipe.
5) Is the Viega 84880 MegaPress fitting made in the USA, and what is its shipping weight?
The 84880 is made in the USA, which matters on public and institutional work with domestic sourcing requirements. Each fitting weighs 0.522 lbs, useful when you are costing out a bulk order of several hundred 90s.
