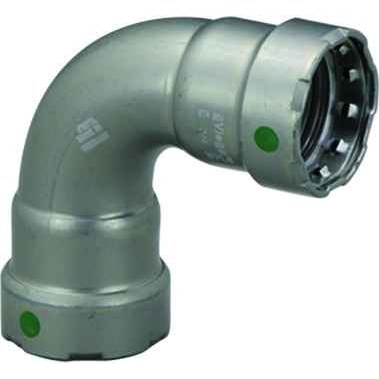

25220 Viega MegaPress 90° elbow Smart Connect technology Carbon steel, 1-1/2'' x 1-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Country Of Origin:
- United States
- Material Type:
- Carbon Steel
- Product Dimension:
- 1-1/2'' x 1-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 5.354"
- Product Height:
- 2.437"
- Product Weight:
- 1.73 lbs
- Product Width:
- 5.354"
- Product Material:
- Carbon steel
Viega 25220 – Frequently Asked Questions
1) Can I use a carbon steel MegaPress elbow on a copper or PEX line?
No. The 25220 is carbon steel and is made for carbon steel pipe systems such as black iron gas or hydronic lines. For copper tube you need a copper press fitting, and for PEX a PEX press or crimp fitting. Putting a carbon steel fitting on copper mixes the metals and the press profile is not the same.
2) What does Smart Connect mean on a Viega MegaPress elbow?
Smart Connect is the feature built into the sealing element of the 25220 elbow that lets an unpressed joint leak visibly during pressure testing. That way an installer finds the missed connection on test rather than after the system is charged and the ceiling is closed up, which is the main reason crews choose MegaPress over threading on a retrofit.
3) Should I use a press elbow or a threaded elbow for a 1-1/2 inch black iron repair?
A threaded elbow needs the pipe cut, reamed, and threaded, plus room to rotate the pipe, which is often impossible on an existing line. The 25220 presses on, so you cut, deburr, mark insertion depth, and press, and the joint is finished in seconds without rotating anything. Threaded still makes sense where you have no press tool with 1-1/2 inch jaws on site, since that tooling is the one prerequisite press fittings add.
4) Is the Viega 25220 made in the USA?
Yes, the 25220 MegaPress elbow is made in the USA. That matters on public and institutional jobs carrying domestic content requirements, so the country of origin is worth noting on the submittal package.
