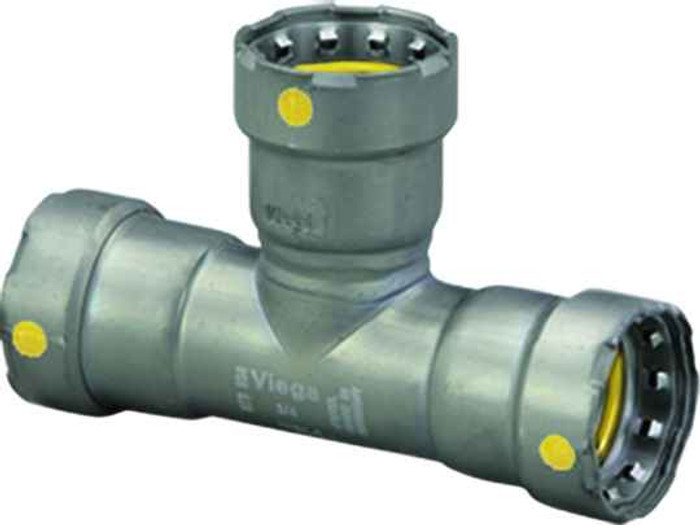

25336 Viega MegaPressG tee Smart Connect technology Carbon steel, 1'' x 1'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Country Of Origin:
- Made in Germany
- Material Type:
- Carbon Steel
- Product Dimension:
- 1'' x 1'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 5.15"
- Product Height:
- 1.78"
- Product Weight:
- 0.917 lbs
- Product Width:
- 3.173"
Viega 25336 – Frequently Asked Questions
1) What sizes are the three outlets on the Viega 25336 MegaPressG tee?
The 25336 is a reducing tee: 1 inch run on both ends with a 1/2 inch branch outlet, so it taps a half-inch line off a 1 inch main without needing a separate bushing. All three ends are press connections (P1 x P2 x P3), not threaded.
2) Is the Viega 25336 MegaPressG tee for gas or for water?
MegaPressG is the gas-rated version of Viega's carbon steel press system, and the 25336 tee is a MegaPressG fitting in carbon steel. Use it on black iron gas piping, not on potable water. For water on steel pipe you want the standard MegaPress line, and for potable copper you want ProPress.
3) What pipe does a MegaPressG 1 inch tee press onto?
Press fittings in this family go onto 1 inch black iron / carbon steel pipe, with the 1/2 inch branch pressing onto 1/2 inch steel pipe. The fitting body itself is carbon steel, so it matches the pipe it joins. It will not press onto copper or PEX.
4) Do I need to thread or weld anything to install the Viega 25336 tee?
No. It is a press-only fitting on all three outlets, so the install is cut, deburr, mark depth, and press with a Viega-approved tool and the correct jaw for each size. No threading, no flame, no pipe dope. You will need both a 1 inch jaw and a 1/2 inch jaw to complete this one tee.
5) What does Smart Connect do on this Viega tee?
Smart Connect is Viega's unpressed-connection feature: if a joint gets missed during pressure testing, it leaks deliberately so the installer finds it before the wall closes up. The 25336 tee has it on all three ends.
6) How much room do I need to fit a Viega 25336 tee in a joist bay or tight chase?
Overall the fitting measures 5.15 inches long, 3.173 inches wide and 1.78 inches high, and it weighs 0.917 lbs. Allow for the press tool jaw around each end on top of that, since the jaw needs clearance perpendicular to the pipe at every connection you press.
7) Is the Viega 25336 made in the USA?
It is made in Germany. Worth noting if you are working a job with domestic sourcing requirements on the spec.
8) What is the part number and MPN for the 1 x 1 x 1/2 MegaPressG tee?
Viega part 25336. That single number covers the 1 inch x 1 inch x 1/2 inch carbon steel MegaPressG tee; there are no finish or configuration options to specify with it.
