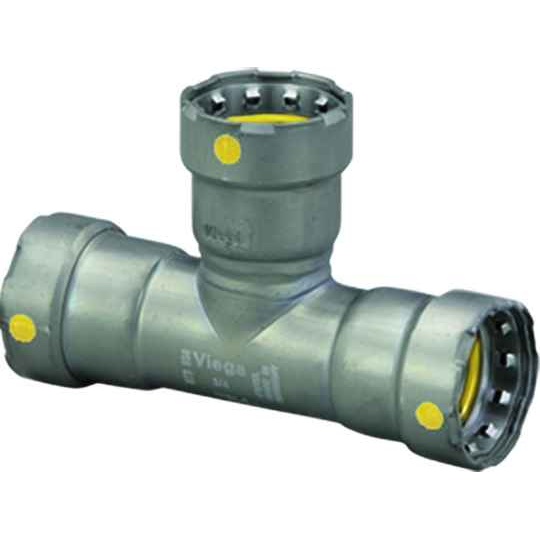

25391 Viega MegaPressG tee Smart Connect technology Carbon steel, 2'' x 2'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Carbon Steel
- Product Dimension:
- 2'' x 2'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.547"
- Product Height:
- 2.894"
- Product Weight:
- 2.513 lbs
- Product Width:
- 4.547"
- Product Material:
- Carbon steel
Viega 25391 – Frequently Asked Questions
1) What pipe sizes does the Viega MegaPressG 25391 tee connect?
The MegaPressG 25391 is a reducing tee sized 2 inch x 2 inch x 1 inch, so the run is 2 inch on both ends and the branch outlet is 1 inch. All three ends are press connections (P1 x P2 x P3), no threading or welding.
2) Is the Viega 25391 MegaPressG tee rated for gas piping or water?
MegaPressG is Viega's gas line press system, distinguished from standard MegaPress by the sealing element used for fuel gas service. The 25391 is a carbon steel press tee built for black iron gas pipe runs. For potable water on carbon steel, you would be looking at standard MegaPress instead.
3) Is the Viega 25391 MegaPressG tee carbon steel or stainless, and can I use it on copper?
Carbon steel. It is made to press onto carbon steel (black iron) pipe, not copper tube. Copper runs take Viega's copper press system, and stainless runs take the stainless version. Mixing a carbon steel fitting onto copper is not a supported joint.
4) What is Smart Connect on the Viega MegaPressG tee and why does it matter on inspection?
Smart Connect is a feature of the sealing element that leaks deliberately when a fitting has been assembled but not yet pressed. On a pressure test, an unpressed 25391 connection shows itself instead of hiding until the system is in service. That is the point for a gas install where every joint has to be verified.
5) How much room do I need to fit the Viega 25391 2 x 2 x 1 tee in a joist bay or chase?
Fitting dimensions are 7.547 inches long, 4.547 inches wide and 2.894 inches high. Add clearance for the press tool jaw around the branch and both run ends, since the jaw needs to swing fully closed on each connection in turn.
6) Do I order the Viega 25391 by that number, and where is it made?
Order by part number 25391, which is also the manufacturer part number for this 2 x 2 x 1 MegaPressG tee. It is made in Germany.
