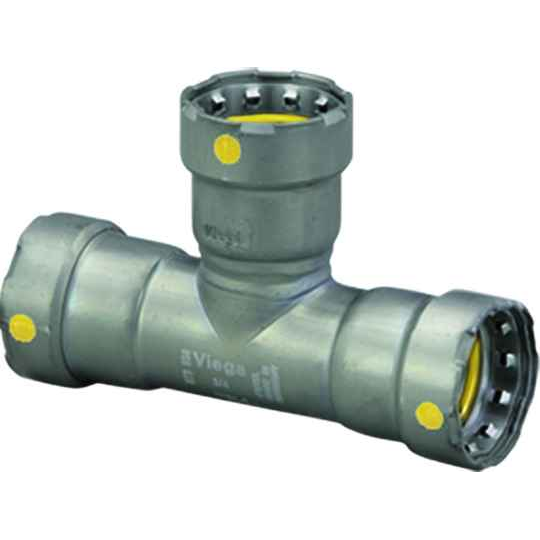

25401 Viega MegaPressG tee Smart Connect technology Carbon steel, 2'' x 2'' x 1-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Country Of Origin:
- Made in Germany
- Material Type:
- Carbon Steel
- Product Dimension:
- 2'' x 2'' x 1-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.504"
- Product Height:
- 2.894"
- Product Weight:
- 2.755 lbs
- Product Width:
- 5.157"
Viega 25401 – Frequently Asked Questions
1) What sizes are the three outlets on the Viega MegaPressG 25401 tee?
The 25401 is a reducing tee: 2 inch run on both ends with a 1-1/2 inch branch. All three ends are press connections (P1 x P2 x P3), so there is no threading or welding at any outlet.
2) Is the Viega 25401 tee made for gas piping or for water?
MegaPressG is the gas-rated side of the MegaPress line, and the 25401 carries the G designation. It is a carbon steel press fitting for black iron gas pipe, not the potable water version. If you are pressing water lines in carbon steel, you want the plain MegaPress equivalent instead.
3) Will the MegaPressG tee thread onto my existing black pipe?
No. The 25401 has press ends on all three outlets, not threads. To tie into existing threaded black iron you need a MegaPressG press-by-male or press-by-female adapter at the transition, then run press from there.
4) What does Smart Connect do on a MegaPressG fitting?
Smart Connect is Viega's unpressed-connection feature: if a joint gets left unpressed during install, the fitting leaks on test so you find it before the wall closes up. On a 2 inch gas branch that is the difference between catching a miss at pressure test and chasing it later.
5) Do I need a special press jaw for the 2 inch MegaPressG tee?
Yes. The 2 inch run on the 25401 falls in the large-diameter MegaPress range, which is pressed with a press ring and actuator rather than a standard small jaw, while the 1-1/2 inch branch is a separate jaw or ring size. Plan on tooling for both the 2 inch and 1-1/2 inch press profiles before you get to the fitting.
6) How much room do I need around the Viega 25401 tee to press it?
The fitting itself measures 7.504 inches long, 5.157 inches wide and 2.894 inches high, so lay out at least that envelope in the chase, then add clearance for the press ring and actuator to swing at each outlet. On tight riser work the branch side is usually what runs out of room first.
7) What part number do I order for the 2 inch MegaPressG reducing tee with a 1-1/2 inch branch?
Viega part number 25401. One configuration, no handing or finish options to specify, so the number alone is the order.
8) Where is the Viega 25401 tee manufactured?
Made in Germany. That matters on institutional and government jobs where country of origin has to be documented in the submittal package.
