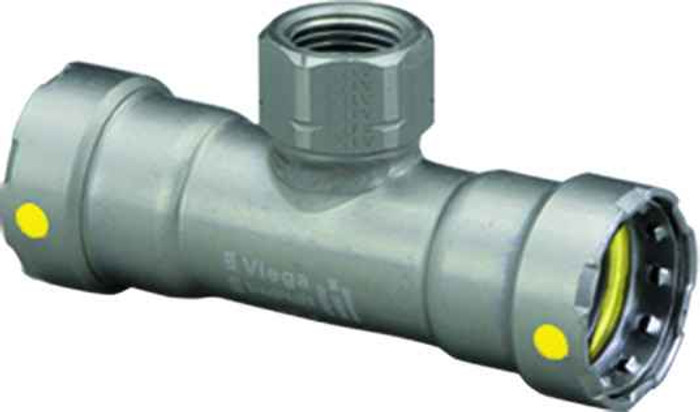

25476 Viega MegaPressG tee Smart Connect technology Carbon steel, 2'' x 2'' x 1-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- Carbon Steel
- Product Dimension:
- 2'' x 2'' x 1-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.547"
- Product Height:
- 2.894"
- Product Weight:
- 2.601 lbs
- Product Width:
- 3.858"
- Product Material:
- Carbon steel
Viega 25476 – Frequently Asked Questions
1) What are the three connections on the Viega MegaPressG 25476 tee?
The 25476 is a 2 inch x 2 inch x 1-1/2 inch tee with a P1 x P2 x FPT configuration. The two 2 inch ends are press connections that go onto the run of pipe, and the 1-1/2 inch branch is a female pipe thread, so you thread into that outlet rather than pressing it. That makes it the fitting to use when you need to pick up a threaded valve, drip leg, or appliance connection off a 2 inch pressed line without adding a separate press-by-thread adapter.
2) Is the MegaPressG 25476 tee for gas, or can I use it on water lines?
MegaPressG is Viega's gas line system, and the 25476 is a MegaPressG carbon steel fitting. The G designation and its sealing element are what separate it from standard MegaPress used on hydronic and water service. Do not mix the two systems on the same run; if you are pressing black iron for water or hydronic heating, you want the standard MegaPress carbon steel tee in the same size instead.
3) What pipe does the 2 inch press end of the Viega 25476 tee go on?
The press ends are carbon steel MegaPressG, so they go on 2 inch black iron or carbon steel pipe, not copper and not stainless. Copper tube takes ProPress; stainless takes MegaPress Stainless. Matching the fitting material to the pipe material is not optional on a press system.
4) What does Smart Connect technology on this Viega tee actually do for the installer?
Smart Connect is Viega's unpressed-connection feature: on a pressure test, a connection that was left unpressed leaks in a controlled way so the installer finds it before the job is closed in. On a 2 inch gas tee sitting in a mechanical room, that is the difference between catching a missed press at test and catching it after the ceiling is up.
5) Can I reduce straight to 1-1/2 inch press with this tee instead of threading?
No. On the 25476 the 1-1/2 inch branch is a female thread, not a press socket. If you want a pressed 1-1/2 inch branch off a 2 inch run, you need the MegaPressG reducing tee with three press ends rather than this press-by-press-by-FPT version.
