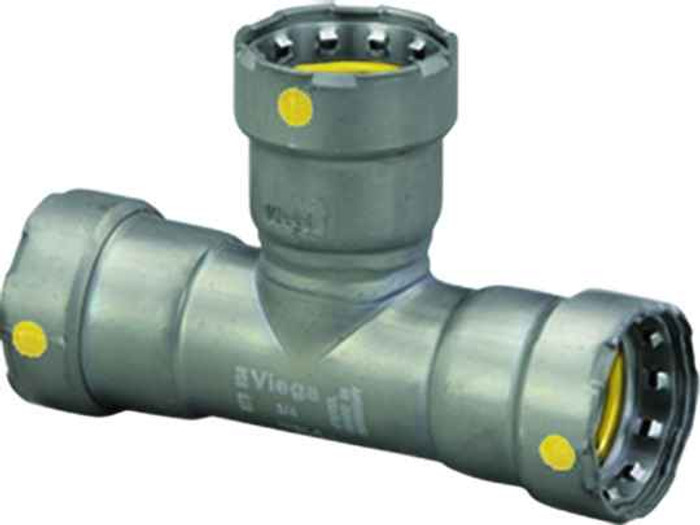

25381 Viega MegaPressG tee Smart Connect technology Carbon steel, 2'' x 2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Carbon Steel
- Product Dimension:
- 2'' x 2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.547"
- Product Height:
- 2.894"
- Product Weight:
- 2.526 lbs
- Product Width:
- 4.252"
- Product Material:
- Carbon steel
Viega 25381 – Frequently Asked Questions
1) What size pipe does the Viega 25381 MegaPressG tee connect to?
The MegaPressG tee 25381 is a reducing tee sized 2 inch x 2 inch x 1/2 inch: the run is 2 inch on both ends and the branch outlet is 1/2 inch. Use it where you need to pull a small 1/2 inch branch off a 2 inch main.
2) Can I use a MegaPressG carbon steel tee on water lines, or is it gas only?
MegaPressG is the gas-rated line of Viega's carbon steel press system. The 25381 is a MegaPressG fitting, so specify it for gas piping on black iron pipe; for water service on carbon steel you want the plain MegaPress version of the fitting instead, not the G.
3) Is the Viega 25381 MegaPressG tee made of carbon steel or stainless?
Carbon steel. That is the MegaPressG material for black iron pipe systems, and it is made in Germany.
4) What does Smart Connect on the MegaPressG 25381 tee actually do for me on the job?
Smart Connect is the sealing element feature Viega builds into MegaPressG fittings so an unpressed connection leaks deliberately during pressure test instead of hiding. On a 2 x 2 x 1/2 tee with three separate press joints, that is the practical benefit: you can find the port you missed before the system is buried or covered.
5) How much room do I need to fit the 2 x 2 x 1/2 MegaPressG tee between other fittings?
Plan the opening around 7.547 inches along its length, 4.252 inches across, and 2.894 inches in height. It weighs 2.526 lbs, so on a 2 inch run you will want the pipe supported close to the joint rather than letting the fitting carry load.
6) Do I need a special press tool for the 2 inch side of this MegaPressG tee?
Yes, and that is the thing to sort out before you order. The 2 inch run ends take the large-diameter MegaPress press jaw and ring setup, while the 1/2 inch branch presses with a standard MegaPress jaw. The tee itself ships as the fitting only, so jaws, rings and the press tool are separate.
7) What is the Viega part number and UPC for the 2 x 2 x 1/2 MegaPressG carbon steel tee?
Viega model 25381, UPC 691514253817. Order by the 25381 number, since the MegaPressG tee family runs across many size combinations and only this one gives you the 2 x 2 x 1/2 reducing configuration.
