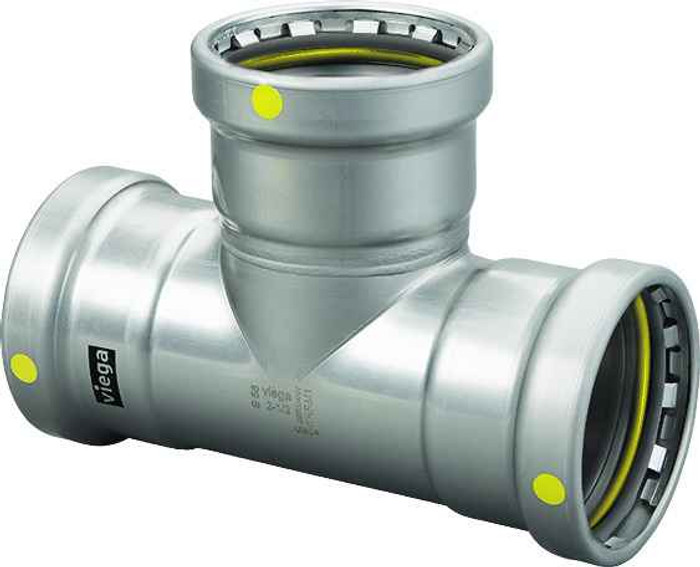

28675 Viega MegaPressG tee Smart Connect technology Carbon steel, 2-1/2'' x 2-1/2'' x 1-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Carbon Steel
- Product Dimension:
- 2-1/2'' x 2-1/2'' x 1-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.087"
- Product Height:
- 3.543"
- Product Weight:
- 2.821 lbs
- Product Width:
- 5.787"
- Product Material:
- Carbon steel
Viega 28675 – Frequently Asked Questions
1) What pipe sizes does the Viega MegaPressG 28675 tee connect?
The MegaPressG tee, model 28675, is a 2-1/2 inch x 2-1/2 inch x 1-1/2 inch reducing tee. The run is 2-1/2 inch on both ends with a 1-1/2 inch branch, so you can pull a smaller branch line off a 2-1/2 inch main without adding a separate reducer. All three ends are press connections.
2) Is the Viega 28675 tee threaded or press-fit?
Press, on all three outlets. The connection type is listed as P1 x P2 x P3, meaning three press ends, so it is installed with a MegaPress jaw and press tool on black iron or carbon steel pipe rather than being threaded or welded. No pipe threading, no hot work.
3) Can I use a MegaPressG fitting on a gas line?
MegaPressG is Viega's gas-rated press system, and the 28675 is a MegaPressG carbon steel tee built for fuel gas piping. The MegaPress (non-G) fittings are the equivalent for water and other non-gas service. Pick the G version wherever the line carries gas so the sealing element matches the medium.
4) What does Smart Connect technology do on a Viega press fitting?
Smart Connect is Viega's feature that lets an unpressed connection leak intentionally during pressure testing, so an installer can spot a joint that was missed before the system is signed off. On a three-outlet fitting like the 2-1/2 x 2-1/2 x 1-1/2 inch 28675 tee that matters, because three separate presses have to be made on one fitting.
5) Is the Viega 28675 tee carbon steel or stainless?
Carbon steel. It is made to join carbon steel and black iron pipe, which is what gas distribution piping in commercial and multi-family buildings normally is. For copper or stainless systems you want a different Viega press line, not a MegaPressG carbon steel fitting.
6) How heavy is the 2-1/2 x 2-1/2 x 1-1/2 inch MegaPressG tee for hanger spacing?
It weighs 2.821 lbs on its own. That is light enough to support on standard pipe hangers, but on a 2-1/2 inch main the fitting plus two filled 2-1/2 inch runs and a 1-1/2 inch branch concentrates load at one point, so put a hanger close to the tee rather than spanning across it.
7) Where is the Viega 28675 MegaPressG tee made?
Made in Germany. For public and institutional procurement that needs documented country of origin on submittals, that is the origin to record for MegaPressG part 28675.
8) What is the manufacturer part number for this Viega MegaPressG reducing tee?
Viega part number 28675. Order by that number to get the carbon steel MegaPressG tee in 2-1/2 inch x 2-1/2 inch x 1-1/2 inch; adjacent MegaPressG tees in other branch sizes carry different numbers.
