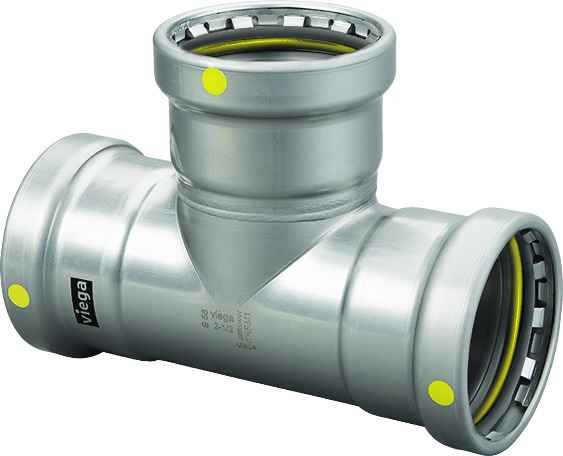

28680 Viega MegaPressG tee Smart Connect technology Carbon steel, 2-1/2'' x 2-1/2'' x 2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Carbon Steel
- Product Dimension:
- 2-1/2'' x 2-1/2'' x 2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.953"
- Product Height:
- 3.543"
- Product Weight:
- 3.246 lbs
- Product Width:
- 5.866"
- Product Material:
- Carbon steel
Viega 28680 – Frequently Asked Questions
1) What size reduction does the Viega 28680 MegaPressG tee provide?
The 28680 is a reducing tee: 2-1/2 inch run on both ends with a 2 inch branch outlet. So you keep a 2-1/2 inch main line and tap off at 2 inch, with no separate bushing needed at the branch.
2) Are all three ends of the Viega 28680 MegaPressG tee press ends, or is one threaded?
All three are press connections, listed as P1 x P2 x P3. There is no thread on this fitting, so it goes together with a press tool and the correct MegaPress jaw or ring for each size, 2-1/2 inch on the run and 2 inch on the branch.
3) What pipe material does the Viega 28680 MegaPressG tee press onto?
It is a carbon steel fitting, made for pressing onto black iron or carbon steel pipe in the same sizes, 2-1/2 inch on the run and 2 inch on the branch. It is not a copper or stainless fitting.
4) What does Smart Connect mean on a Viega MegaPressG fitting?
Smart Connect is Viega's unpressed-connection feature: a fitting that has not been pressed will leak during pressure test, so the installer finds the missed joint before the system is put in service. On a 2-1/2 x 2-1/2 x 2 tee that matters, because three joints are made at one fitting and one of them is easy to skip.
5) How much clearance do I need to fit a 2-1/2 inch MegaPressG tee in a tight chase?
Plan around a body measuring 7.953 by 5.866 by 3.543 inches. Add room beyond that for the press jaw to open and rotate around each of the three ends, which is usually the limiting factor rather than the fitting itself in a chase or tight joist bay.
6) How do I confirm I am ordering the right Viega reducing tee for a 2 inch branch off a 2-1/2 inch line?
Order by part number 28680. That is the MegaPressG carbon steel tee sized 2-1/2 x 2-1/2 x 2, manufactured in Germany. Viega numbers change with every size permutation, so matching the three-figure size string is what keeps you from getting a straight 2-1/2 inch tee.
