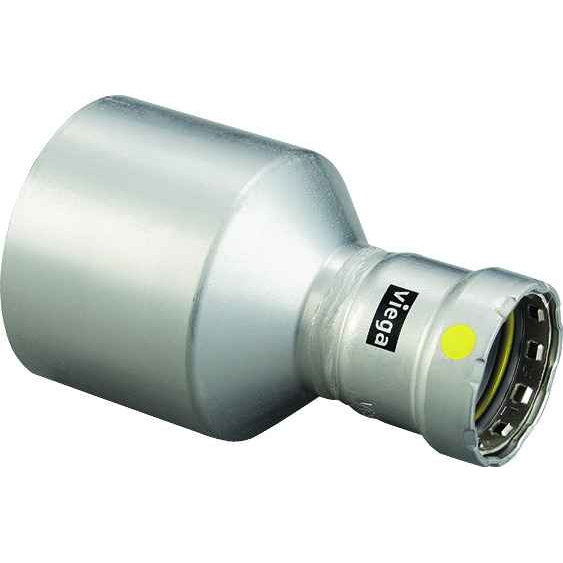

28820 Viega MegaPressG reducer Smart Connect technology Carbon steel, 3'' x 1-1/4''
Manufacturer Resources
Product Specs
- Connection Type:
- FTG x P
- Material Type:
- Carbon Steel
- Product Dimension:
- 3'' x 1-1/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 5.976"
- Product Height:
- 3.5"
- Product Weight:
- 1.942 lbs
- Product Width:
- 3.5"
- Product Material:
- Carbon steel
Viega 28820 – Frequently Asked Questions
1) What does FTG x P mean on the Viega 28820 MegaPressG reducer?
FTG x P is the end configuration: one end is a fitting (FTG) end sized to slip into another fitting or press socket, and the other is a press (P) end that receives pipe and is crimped with a press tool. So the 28820 is not press on both ends, which matters when you are laying out a run and need to know which end goes where.
2) Does the Viega 28820 reducer need to be pressed, or can it be threaded?
The press end is crimped, not threaded. One end of the 28820 is a press connection made with a press tool and jaw sized for the fitting; the other is a fitting end that inserts into a mating socket. There are no threads on this part, so no pipe dope, tape, or threading of the pipe is involved on either end.
3) Is the Viega 28820 reducer brass or steel?
Carbon steel. That is what pairs it with black iron and carbon steel pipe systems rather than copper or stainless runs. The piece weighs 1.942 lbs.
4) What is Smart Connect on the Viega MegaPressG 28820?
Smart Connect is Viega's unpressed-connection feature built into the sealing element of the MegaPressG fitting. During pressure testing, a connection that was left unpressed leaks noticeably so the installer can find it before the system is put into service. It is a workflow feature on the 28820, not something you order separately.
5) Can I use the Viega 28820 carbon steel press fitting on copper tubing?
No. It is a carbon steel fitting built for carbon steel and black iron pipe. Copper and copper tube size runs need a copper press system, and stainless runs need stainless fittings. Mixing a carbon steel body onto copper is the wrong material pairing regardless of the press tool you own.
6) Where is the Viega 28820 MegaPressG fitting made?
Germany. For submittal packages or buy-clause reviews on institutional jobs, the 28820 carries a Made in Germany country of origin and a manufacturer part number of 28820.
How fast can I get the Viega 28820 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Viega 28820 come with a warranty?
Absolutely. The Viega 28820 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Viega 28820?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
