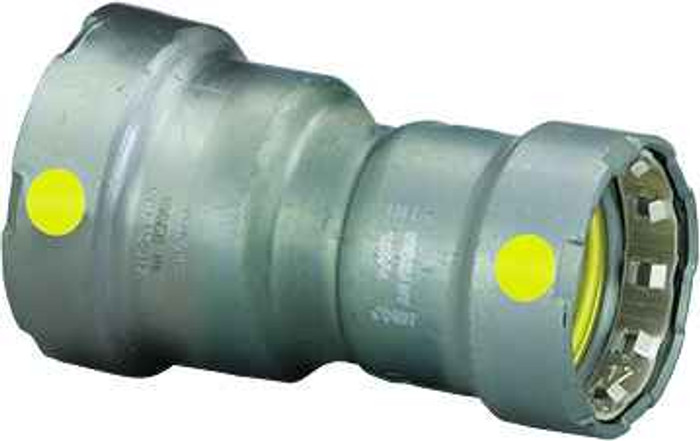

25941 Viega MegaPressG reducer Smart Connect technology Carbon steel, 1'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- Carbon Steel
- Product Dimension:
- 1'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 3.744"
- Product Height:
- 1.78"
- Product Weight:
- 0.511 lbs
- Product Width:
- 1.78"
- Product Material:
- Carbon steel
Viega 25941 – Frequently Asked Questions
1) What size pipe does the Viega MegaPressG 25941 reducer fit?
The Viega 25941 MegaPressG reducing fitting is sized 1 inch x 3/4 inch, so it transitions a 1 inch run down to 3/4 inch. Both ends are press connections (P1 x P2), meaning they are crimped onto the pipe with a press tool rather than threaded or welded.
2) Is the Viega 25941 MegaPressG fitting made of carbon steel or copper?
Carbon steel. The MegaPressG 25941 is a carbon steel press fitting, so it is intended for black iron / carbon steel pipe systems, not copper tube. It is made in Germany.
3) Do I need to thread or weld the Viega 25941, or can it be pressed?
No threading and no welding. Both ends of the 25941 are press ends (P1 x P2), so the joint is made cold with a press tool and the correct jaw for the size. That means no hot work permit and no cutting oil on a fuel gas line retrofit.
4) What is Smart Connect on the Viega 25941 press fitting and why does it matter on the job?
Smart Connect is Viega's feature that lets an unpressed connection leak visibly during pressure testing, so an installer can find a fitting that was missed before the system is put into service. On a run with dozens of joints, that is how you catch the one you skipped without tearing walls apart later.
5) How much room do I need to fit the 1 inch x 3/4 inch MegaPressG reducer?
The 25941 measures 3.744 inches in length, with a height and width of 1.78 inches each, and weighs 0.511 lbs. Allow for that body plus the jaw clearance your press tool needs around each end when you are working in a tight joist bay or against a wall.
6) Is the Viega MegaPressG 25941 the same as a standard MegaPress fitting?
They are different lines. MegaPressG is the gas version of Viega's carbon steel press system, identified by its yellow sealing element, while standard MegaPress is used for non-gas applications. The 25941 is a MegaPressG carbon steel fitting in 1 inch x 3/4 inch, so order it where the drawing calls for the G series.
