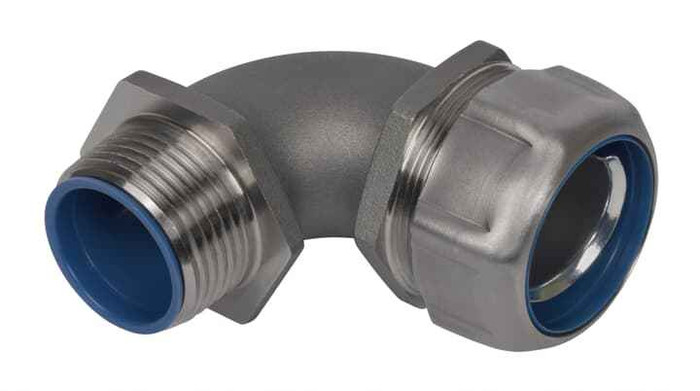

3/4 90 DEG HT 316 SS LT FITTING
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Group:
- Conduit & Fittings
- Product Type:
- 90 Degree Fitting for Flexible Metallic Conduit
- Department:
- Electrical
- Product Subgroup:
- Electrical Fittings
- Product Color:
- Metallic
- Product Material:
- 316 Stainless Steel Body and Ground Cone
Thomas & Betts 5353SST6HT – Frequently Asked Questions
1) What size conduit does the Thomas & Betts 5353SST6HT fitting take?
It's a 3/4 inch fitting, made for 3/4 inch liquidtight flexible metal conduit. It's a 90 degree elbow connector, so it turns the conduit run at a right angle right at the box or enclosure entry instead of needing a sweep in the flex itself.
2) Is the 5353SST6HT connector stainless steel all the way through, including the grounding cone?
Yes. Both the body and the ground cone are 316 stainless steel, so there is no plated-steel or die-cast part inside to corrode out. That matters on wash-down and coastal work, where a zinc fitting body may hold up but the internal ground path is the first thing to fail.
3) Is the 5353SST6HT for liquidtight flex or for standard Greenfield?
It's an LT fitting, meant for liquidtight flexible metal conduit, the jacketed kind. It seals against the PVC jacket. Plain unjacketed flexible metal conduit (Greenfield) takes a different connector and won't seal in this one.
4) Do I need a separate grounding bushing with this Thomas & Betts liquidtight elbow?
No separate bushing. The 5353SST6HT has an integral ground cone as part of the fitting, in 316 stainless like the body, which bonds the conduit armor as you tighten it up.
5) What does the HT in 5353SST6HT mean on this liquidtight fitting?
HT is the high-temperature version of Thomas & Betts' 5353 series stainless liquidtight elbow, carrying a high-temperature sealing gland rather than the standard one. Same 3/4 inch trade size and same 316 stainless body and ground cone as the base fitting.
6) Will a 316 stainless liquidtight fitting hold up in a food plant or coastal outdoor install?
316 stainless is the alloy specified for chloride exposure, which is why food processing, pharma, marine and coastal work call it out over 304 or plated steel. The 5353SST6HT uses it for the body and the ground cone, so the whole current-carrying path is the same alloy. For a dry indoor run with no chemical or salt exposure, a zinc die-cast liquidtight connector does the same electrical job for less.
7) What is the exact part number to order this 3/4 inch stainless 90 degree liquidtight fitting?
Order Thomas & Betts MPN 5353SST6HT. That single number covers the 3/4 inch trade size, the 90 degree body, the HT high-temperature gland and the 316 stainless construction, so there are no finish or configuration options to specify with it.
