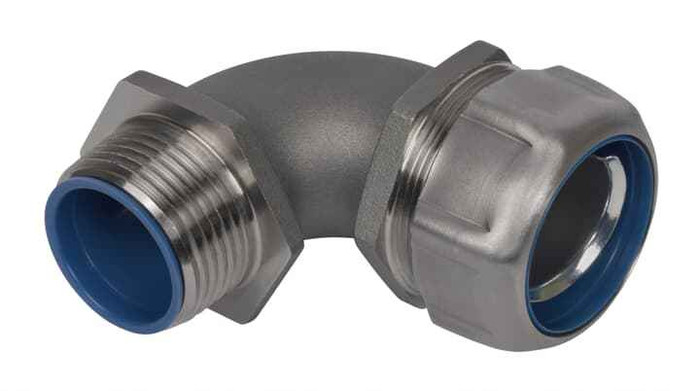

3/8 90 DEG HT 316 SS LT FITTING
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Group:
- Conduit & Fittings
- Product Type:
- 90 Degree Fitting for Flexible Metallic Conduit
- Department:
- Electrical
- Product Subgroup:
- Electrical Fittings
- Product Color:
- Metallic
- Product Material:
- 316 Stainless Steel Body and Ground Cone
Thomas & Betts 5351SST6HT – Frequently Asked Questions
1) Is the 5351SST6HT fitting stainless steel all the way through, or just the body?
Both the body and the ground cone are 316 stainless steel. That matters because the ground cone is the part that bites into the conduit armor to carry the bond, and a plated or dissimilar-metal cone in a corrosive area is where these fittings usually fail first. With 316 on both, the whole current path through the fitting is the same corrosion-resistant alloy.
2) Will a 316 stainless liquidtight fitting hold up in a washdown or coastal environment?
316 stainless is the alloy specified for chloride exposure, which is why it gets used in food and beverage washdown areas, wastewater plants, marine and coastal installs, and chemical process areas where 304 or zinc-plated steel pits. The 5351SST6HT uses 316 for the body and the ground cone.
3) When should I use a 90 degree liquidtight connector instead of a straight one?
Use the 90 when the conduit has to turn immediately at the box or enclosure and there is not enough room for the flex to make its own bend radius, which is the usual case on a tight motor termination or a device box mounted close to a wall. The 5351SST6HT is the 90 degree version for 3/8 inch conduit. If you have clearance, a straight connector plus a gentle sweep in the flex is easier to pull through and puts less strain on the conductors.
4) Does the 5351SST6HT need a separate bonding jumper?
The fitting includes an integral ground cone in 316 stainless, which is what makes metal-to-metal contact with the conduit armor and carries the bond through to the enclosure. Whether a supplemental bonding jumper is also required is driven by the circuit and the length of the flex run under your governing code, not by the fitting itself.
