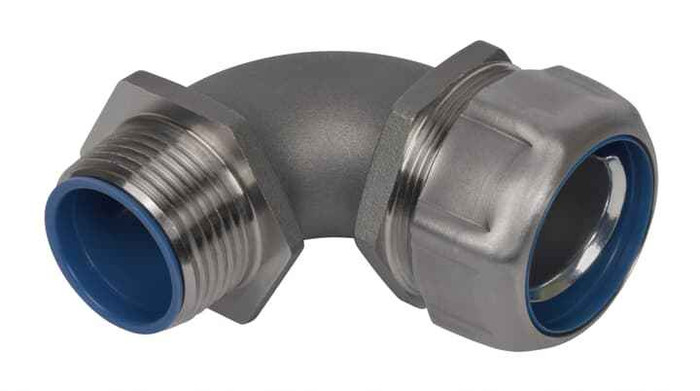

1 90 DEG HT 316 SS LT FITTING
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Group:
- Conduit & Fittings
- Product Type:
- 90 Degree Fitting for Flexible Metallic Conduit
- Department:
- Electrical
- Product Subgroup:
- Electrical Fittings
- Product Color:
- Metallic
- Product Material:
- 316 Stainless Steel Body and Ground Cone
Thomas & Betts 5354SST6HT – Frequently Asked Questions
1) What size conduit does the Thomas & Betts 5354SST6HT 90 degree fitting take?
The 5354SST6HT is a 1 inch fitting for liquidtight flexible metal conduit. It terminates 1 inch trade size LT flex at a 90 degree turn, so it is the part to use where the flex has to enter a box or enclosure tight against a wall with no room for a sweep.
2) Does the 5354SST6HT connector maintain equipment grounding continuity through the flex?
It includes an integral ground cone, also in 316 stainless, which bites the conduit's metal core to carry the ground path through the fitting. So the connector itself is part of the bonding path rather than just a mechanical termination.
3) What does the HT in Thomas & Betts 5354SST6HT mean?
HT designates the high temperature version of the 5354SST6 liquidtight fitting. It is the same 1 inch 90 degree 316 stainless body, specified where the sealing gasket has to tolerate elevated ambient or process heat that would shorten the life of a standard sealing ring.
4) Should I use a 90 degree liquidtight fitting or a straight one with a sweep in the flex?
Use the 90 when the enclosure sits close to a wall, floor, or machine frame and the flex has no room to bend without kinking or exceeding its bend radius. A straight connector plus a formed sweep is fine in open space and gives a gentler pull for conductors. The 5354SST6HT gives you a fixed 90 at the box, in 1 inch size and 316 stainless.
5) Can I use this fitting with standard 1 inch metal flex instead of liquidtight?
It is built as a liquidtight fitting, so it is intended for 1 inch liquidtight flexible metal conduit where the jacket seals against the gasket. On dry-location non-jacketed flex you lose the sealing function the fitting exists for, and a plain squeeze-type or screw-in flex connector is the right part instead.
6) What is the exact part number and finish for ordering this stainless liquidtight elbow?
Order by Thomas & Betts MPN 5354SST6HT. The finish is bare metallic stainless, not painted or plated, so it will visually match other 316 stainless fittings on the same enclosure.
