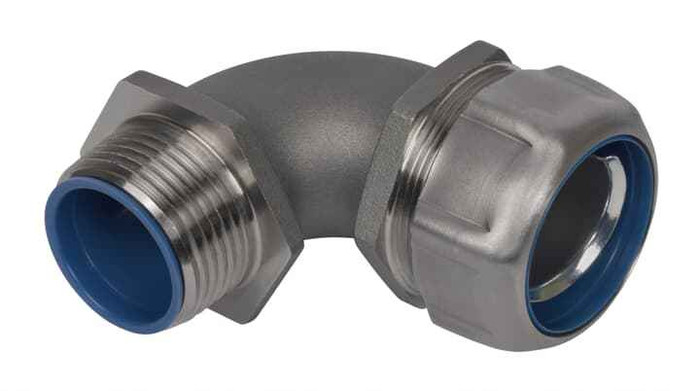

1 1/4 90 DEG HT 316 SS LT FITTING
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Group:
- Conduit & Fittings
- Product Type:
- 90 Degree Fitting for Flexible Metallic Conduit
- Department:
- Electrical
- Product Subgroup:
- Electrical Fittings
- Product Color:
- Metallic
- Product Material:
- 316 Stainless Steel Body and Ground Cone
Thomas & Betts 5355SST6HT – Frequently Asked Questions
1) What conduit does the Thomas & Betts 5355SST6HT 90 degree fitting connect?
It terminates 1-1/4 inch liquidtight flexible metallic conduit at a 90 degree turn. The body and ground cone are 316 stainless steel, so it is the fitting you use where the run is stainless or the environment would eat a die cast or malleable iron fitting.
2) Is the 5355SST6HT suitable for washdown, food plant, or coastal outdoor use?
That is what the 316 stainless construction is for. 316 holds up to chlorides and washdown chemistry better than 304 or plated steel, and both the body and the ground cone are 316 on this one, so there is no dissimilar metal buried at the grounding path. It is a liquidtight connector, so the conduit system stays sealed at the turn.
3) Will the 5355SST6HT work on 1 inch or 1-1/2 inch liquidtight?
No. This is a 1-1/4 inch trade size fitting only, matched to 1-1/4 inch liquidtight flexible metal conduit and a 1-1/4 inch knockout. For other trade sizes you need the corresponding size in the same stainless series.
4) Does the 5355SST6HT maintain equipment grounding continuity through the conduit?
It includes a ground cone, which bites the conduit's metal core and carries continuity through the connector into the enclosure. The cone is 316 stainless, same as the body.
5) Why would I use a 90 degree liquidtight connector instead of a straight one?
A 90 pulls the conduit tight against the enclosure and turns it immediately, so you are not forcing a bend radius in a tight gutter or against a wall. If you have room to sweep the conduit itself, a straight connector is simpler and cheaper. Where the box sits flush to a surface or you need the run to drop straight down off the fitting, the 90 is the one to order. This model is the 1-1/4 inch size.
6) What is the exact part number and manufacturer for the 1-1/4 inch 316 stainless 90 degree liquidtight fitting?
Thomas & Betts catalog number 5355SST6HT. Order by that number if you are matching an existing stainless conduit system, since the standard steel and die cast versions of the same size will not match the material spec.
