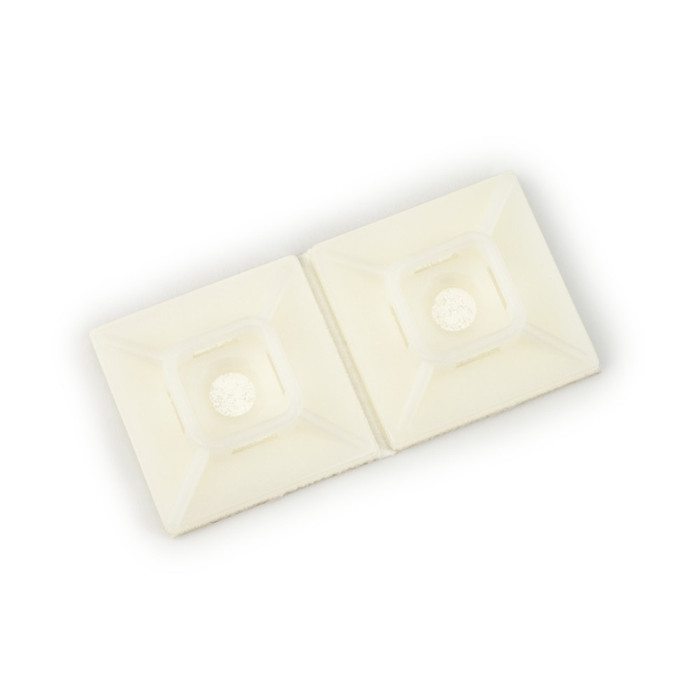

3M™ Cable Tie Mounting Bases CTB1X1NTA-C
Features
- RoHS 2011/65/EU Compliant
- Bag quantity of 100
- Keep your wire or cable bundles organized in narrow spaces
- Ideal for use with miniature, intermediate and standard cable ties
Manufacturer Resources
Product Specs
- Overall Length Imperial:
- 1 in
- Overall Length Metric:
- 25.4 mm
- Overall Width Imperial:
- 1 in
- Overall Width Metric:
- 25.4 mm
- Slot Height Imperial:
- 0.06 in
- Slot Height Metric:
- 1.5 mm
- Slot Width Imperial:
- 0.21 in
- Slot Width Metric:
- 5.334 mm
- Department:
- Electrical
- Installation Category:
- Adhesive
- Product Subgroup:
- Cable Ties & Mounts
- Product Type:
- Cable Tie Mount
3M 7010400621 – Frequently Asked Questions
1) What size cable tie fits the 3M CTB1X1NTA-C mounting base?
The slot on the CTB1X1NTA-C measures 0.21 in (5.334 mm) wide by 0.06 in (1.5 mm) high, so it takes miniature, intermediate and standard cable ties. A heavy duty tie with a thicker strap or a wider strap than 0.21 in will not feed through.
2) How is the 3M CTB1X1NTA-C cable tie base attached, and do I need screws?
It is an adhesive-mount base, so no drilling and no fasteners. That makes it the choice where you cannot penetrate the substrate, inside enclosures, panels, or finished surfaces. If you need a mechanical hold on a vibrating or high-heat surface, use a screw-mount base instead.
3) What footprint does the CTB1X1NTA-C base take up on the panel?
One inch square, 1 in (25.4 mm) long by 1 in (25.4 mm) wide. Allow that much flat, clean surface per base plus clearance for the tie head alongside the bundle.
4) Are the 3M CTB1X1NTA-C cable tie bases RoHS compliant for a spec submittal?
Yes. The CTB1X1NTA-C is compliant with RoHS 2011/65/EU, which is the directive most electrical submittals and institutional procurement packages ask for.
5) Will these bases work for routing cable in a tight raceway or shallow chase?
That is what they are built for. The base is a 1 in square pad with a low profile slot, 0.06 in high, so it keeps bundles tidy in narrow spaces where a bulkier clamp or a screw-mount clip will not sit.
6) How many 3M CTB1X1NTA-C mounting bases come in a bag?
They ship 100 to a bag, which is why these get specified for panel build-outs and repeat MRO work rather than one-off repairs.
7) What is the 3M part number and MPN for the CTB1X1NTA-C mounting base?
3M sells it as CTB1X1NTA-C under part number 7010400621. That is the number to quote when matching what is already installed on a job.
