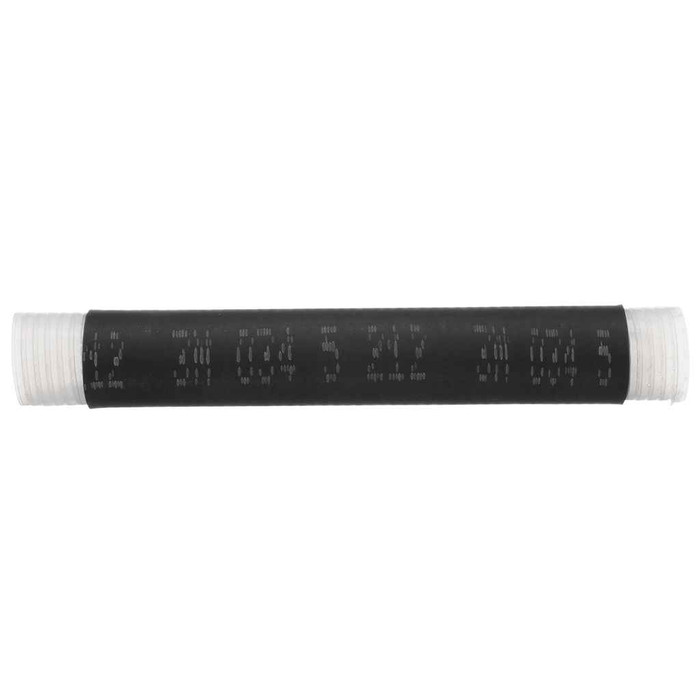

3M 7010397011 3M, Cold Shrink Insulator 8424-8P, 1-1/0 AWG, 10/case - Point of purchase

3M 7010397011 3M, Cold Shrink Insulator 8424-8P, 1-1/0 AWG, 10/case - Point of purchase

(No reviews yet) Write a Review

Model: 7010397011
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$110.34
$60.34
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M, Cold Shrink Insulator 8424-8P, 1-1/0 AWG, 10/case - Point of purchase

  • Features

    • Made of EPDM rubber which contains no chlorides or sulfur
    • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
    • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
    • Simple installation which requires no tools
    • Covers a wide range of cable cross sections
    • Withstands temperatures of -40 to 90 degC (-40 to 194 degF)


7010397011 - spec sheet

Manufacturer Resources

Product Specs

Ais Url Article Information Sheet :
https://https://cdmsweb.3m.com/ingredientcommunication/file/Media/OGArb9HsN1s
Cable Shielding:
Non-shielded
Cable Type:
Power Cable
Conductor Material:
Aluminum
Country Of Origin:
United States
Etim Class 7 0:
EC000217
Etim Class 8 0:
EC000217
Inner Diameter After Shrink Imperial :
0.098 in
Inner Diameter After Shrink Metric :
2.5 mm
Inner Diameter Before Shrink Imperial :
0.823 in
Inner Diameter Before Shrink Metric :
20.9 mm
Manufacturing Origin:
USA
Maximum Conductor Size Imperial :
6 AWG
Maximum Conductor Size Metric :
50 mm²
Maximum Connector Length:
3.0 in
Maximum Connector Length Metric :
76.2 mm
Maximum Operating Temperature Celsius :
90.0 Degree
Maximum Operating Temperature Fahrenheit :
194.0 Degree
Minimum Conductor Size Imperial :
10 AWG
Minimum Conductor Size Metric :
6 mm²
Minimum Operating Temperature Celsius :
-40.0 Degree
Minimum Operating Temperature Fahrenheit :
-40.0 Degree
Number Of Conductors:
1
Product Color:
Black
Product Material:
EPDM Rubber
Product Model:
Cold-shrink
Product Type:
Splice
Product Voltage:
1 kV
Rds Url Regulatory Data Sheet :
https://cdmsweb.3m.com/ingredientcommunication/file/Media/q3l_4Oz1wnw
Relaxed Tube Length:
8.0 in
Relaxed Tube Length Metric :
203.2 mm
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Shelf Life:
1800
Splice Type:
Cold Shrink
