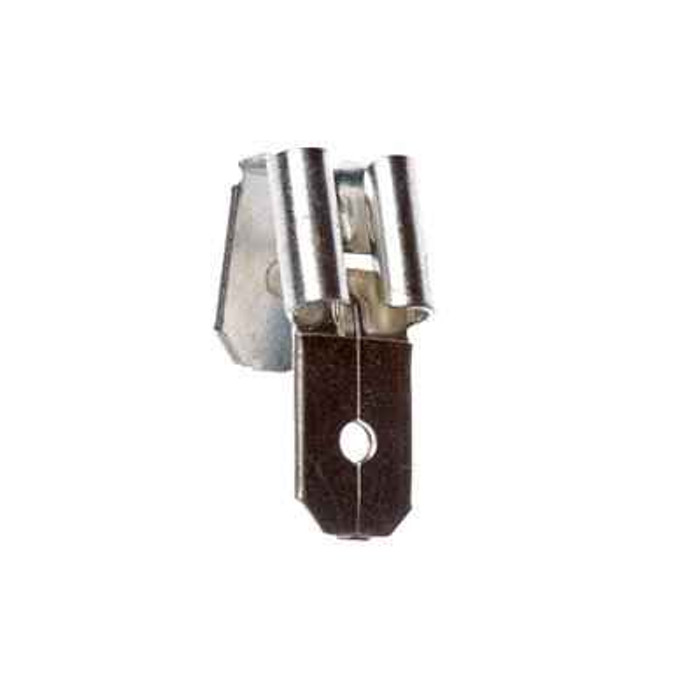

Scotchlok Non-Insulated Double Male-Female Electrical Adapter 0.25 Inch 606V Rated

Scotchlok Non-Insulated Double Male-Female Electrical Adapter

Professional Wire Tapping & Splicing Solution

The Scotchlok Non-Insulated Double Male-Female Electrical Adapter delivers reliable performance for various wire tapping and splicing applications. This professional-grade adapter interconnects two connectors already attached to wires, featuring durable brass construction with tin-plated finish for corrosion resistance and optimal conductivity. Rated for 606V maximum voltage with exceptional temperature tolerance up to 482�F (250�C), this UL Listed and CSA Certified adapter ensures dependable electrical connections in demanding environments.

Professional Features & Benefits

• 606V Maximum Voltage Rating: Supports both 600V building wire applications and 1000V for signs, fixtures, and luminaires, providing versatile electrical compatibility.
• High Temperature Tolerance: Withstands maximum operating temperatures up to 482�F (250�C), ensuring reliable performance in high-heat environments.
• Durable Brass Construction: Provides excellent electrical conductivity with tin-plated finish that resists corrosion for long-lasting connections.
• 0.25 Inch Tab Compatibility: Precisely mates with 0.25-inch wide female and male tabs for secure, consistent connections.
• Non-Insulated Butted-Seam Barrel: Features professional butted-seam design for direct electrical contact and reliable current transfer.
• UL Listed & CSA Certified: Meets rigorous safety standards with UL and CSA agency approvals for professional electrical installations.
• RoHS 2011/65/EU Compliant: Environmentally compliant construction without exemptions ensures regulatory compliance for commercial applications.

Technical Specifications

• 3m Id: 80610057087
• Agency Approvals: UL and CSA
• Barrel Style: Butted
• Csa File Number: LR22190
• Fastener Orientation: Double Male-Female
• Insulation Material: Non-Insulated
• Length Metric : 19.3
• Mates With Female Male Tab Width W : 0.25 Inch
• Maximum Operating Temperature Celsius : 250 Degree Celsius
• Maximum Operating Temperature Fahrenheit : 482 Degree Fahrenheit
• Maximum Recommended Voltage Rating: 606 V
• National Stock Number: 5.94E+12
• Packaging: 500 per bulk box
• Pad Width: 0.25 Inch
• Product Length: 0.76 Inch
• Product Material: Plastic
• Product Type: Connector
• Rohs 2011 65 Eu Compliant: Yes
• Rohs Eu Comments: RoHS 2011/65/EU compliant without exemption
• Terminal Style: Adapter
• Terminal Type: Adapter
• Thickness: 0.032 Inch
• Thickness Metric : 0.812
• Trademark: Scotchlok
• Ul File Number: E70512

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Connections
• Wire Tapping Applications
• Splicing Operations
• Building Wire Installations
• Sign and Fixture Wiring
• Luminaire Connections
• Commercial Electrical Systems

Why Choose Scotchlok Quality?

Scotchlok electrical adapters deliver proven reliability with UL Listed and CSA Certified safety approvals. The durable brass construction with tin-plated corrosion resistance ensures long-lasting performance, while RoHS 2011/65/EU compliance provides environmental responsibility. Manufactured in the USA with rigorous quality standards, these adapters offer professional-grade dependability for critical electrical connections.
