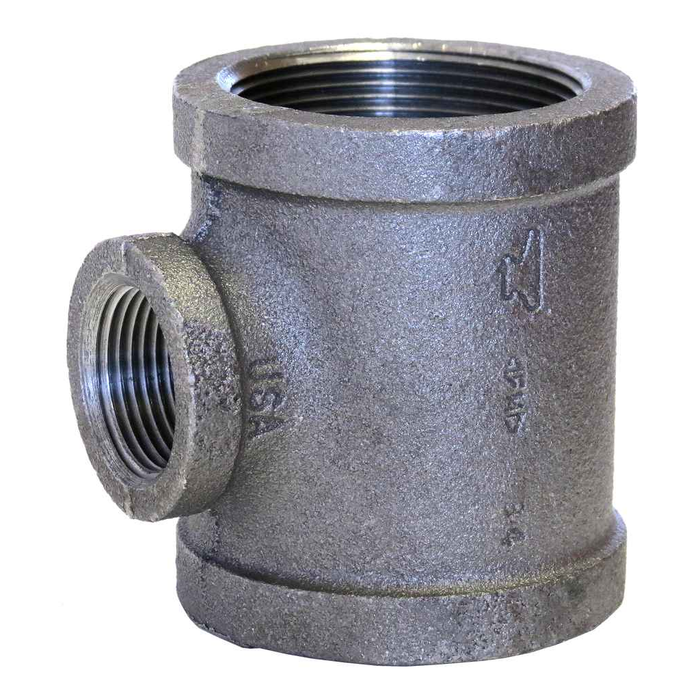

3X3X1 BLK MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 3
- Size 2:
- 3
- Size 3:
- 1
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 4.13 lbs
ASC Engineered Solutions 310055207 – Frequently Asked Questions
1) What size are the three openings on the ASC Engineered Solutions 3x3x1 black malleable iron tee?
It's a reducing tee: the run is 3 inch on both ends and the branch outlet is 1 inch. All three openings are female pipe thread (FPT), so it threads onto male-threaded pipe nipples at every port. Use it where you need to pull a 1 inch branch off a 3 inch line without adding a bushing.
2) Is this black malleable iron tee UL Listed and FM Approved for a fire sprinkler line?
Yes, the 3x3x1 black malleable iron tee carries UL/FM recognition, which is what a sprinkler contractor needs for threaded fittings on a wet or dry system. It is a standard (STD) pattern fitting made to ASME B16.3 for both dimensions and pressure rating, with NPT threads per ASME B1.20.1.
3) Can I use a black malleable iron tee on a domestic water line?
No. Black malleable iron is for non-potable service, gas, and fire protection piping, not drinking water, because the uncoated black finish corrodes in wet potable systems. For potable water you want a galvanized malleable iron fitting or copper/brass. This one's finish is black and the material is malleable iron to ASTM A-197.
4) Is this a standard weight or extra heavy malleable iron tee?
Standard weight (STD), built to ASME B16.3. That's the common class for threaded black iron work. If your spec calls out Class 300 extra heavy malleable iron, this is not the fitting to use.
5) What is the ASC Engineered Solutions part number for the 3x3x1 black tee?
Order it as ASC Engineered Solutions model 310055207, a 3 x 3 x 1 black malleable iron reducing tee.
