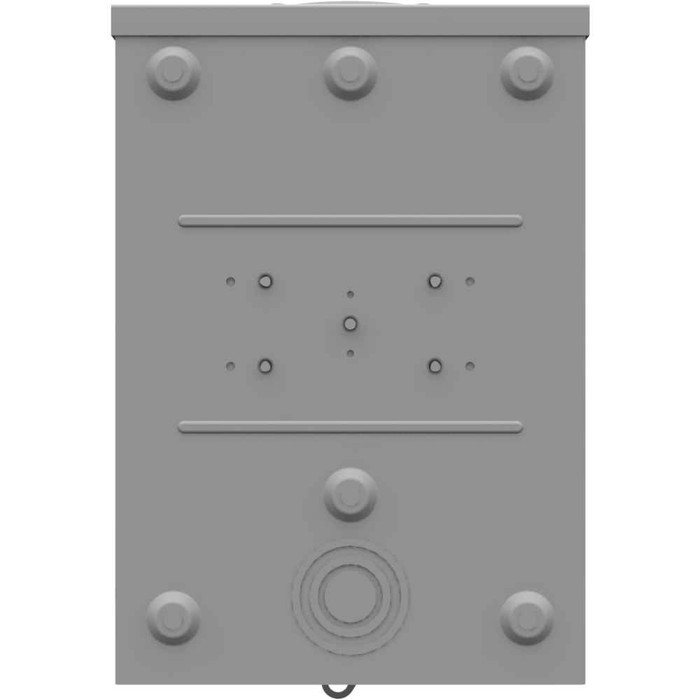

Milbank 3.313x8x11.5 G90 Galvanized Steel Ringless Meter Socket, 4 Terminal, Small Hub, Triplex Ground, Horn Bypass, 125 Amp
Professional-Grade Metering Solution with Horn Bypass Protection
The Milbank 4 Terminal Ringless Meter Socket delivers professional-grade metering performance for residential and light commercial electrical applications. This G90 galvanized steel with powder coat finish meter socket features horn bypass protection and triplex ground configuration designed for electrical contractors and utility professionals, providing the reliable performance and UL Listed safety that electrical professionals demand.
Professional Features & Benefits
Advanced Metering Design
- 4 Terminal Ringless Configuration - Eliminates meter ring requirements for simplified installation and enhanced safety
- Horn Bypass Protection - Provides reliable overcurrent protection with professional-grade bypass capability
- Small Hub Opening Design - Accommodates standard utility connections with compact footprint
- Triplex Ground System - Ensures proper grounding for three-wire electrical systems
Safety & Compliance Standards
- UL Listed Certification - Meets rigorous safety standards for electrical metering equipment
- Type 3R Weather Protection - Provides reliable outdoor performance against rain, sleet, and ice formation
- 125 Amp Continuous Rating - Handles demanding electrical loads with professional reliability
Technical Specifications
Compact 3.313" x 8" x 11.5" dimensions with G90 galvanized steel construction and powder coat finish. Single position meter socket rated for 600V AC, 125 continuous amperes, 60 Hz operation. Features lay-in terminals for 6-2/0 AWG conductors on both line and load sides. Glass polyester insulation provides superior electrical isolation. Surface mount design with overhead or underground cable entry capability.
Installation Process
- Mount securely to approved surface using proper electrical mounting hardware for reliable support
- Connect line side conductors (6-2/0 AWG) to utility feed terminals with proper torque specifications
- Install load side wiring (6-2/0 AWG) to lay-in terminals ensuring proper conductor seating
- Verify triplex ground connection meets local electrical code requirements
- Test horn bypass operation to ensure proper overcurrent protection functionality
- Complete final inspection verifying all connections meet UL Listed installation standards
Professional Applications
Ideal for:
- Residential Metering - Single-family homes, townhouses, and residential electrical service installations
- Light Commercial Applications - Small businesses, retail spaces, and commercial tenant metering
- Utility Service Connections - Primary metering points for electrical service entrance applications
- Electrical Contractor Projects - New construction and electrical service upgrade installations
- Municipal Electrical Systems - Public facility metering and utility infrastructure projects
- Industrial Facility Metering - Submetering applications in manufacturing and warehouse facilities
- Multi-Tenant Buildings - Individual unit metering in apartment complexes and commercial buildings
- Outdoor Electrical Installations - Weather-protected metering for exterior electrical service points
G90 Galvanized Steel Advantage
Milbank's G90 galvanized steel construction with powder coat finish provides superior corrosion resistance and long-lasting durability for outdoor electrical metering applications. The advanced coating system protects against moisture, UV exposure, and environmental contaminants while maintaining professional appearance and structural integrity throughout the product lifecycle.
Why Choose Milbank Quality?
Milbank's commitment to UL Listed safety, reliable metering performance, and Type 3R compliance standards makes this ringless meter socket the preferred choice for electrical professionals. With decades of experience in electrical metering solutions, Milbank delivers the quality construction and dependable operation that contractors and utilities trust for critical electrical infrastructure applications.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 125 Continuous Ampere
- Application:
- Meter Socket
- Bypass Provision:
- Horn Bypass
- Cable Entry:
- Overhead or Underground
- Equipment Ground:
- Triplex Ground
- Frequency Rating:
- 60 Hertz
- Hub Closing Plate:
- Small Hub Opening
- Insulation:
- Glass Polyester
- Line Side Wire Range:
- 6 - 2/0 AWG
- Load Side Wire Range:
- 6 - 2/0 AWG
- Main Breaker Size:
- No Main Breaker
- Material:
- G90 Galvanized Steel with Powder Coat Finish
- Number Of Jaws:
- 4 Terminal
- Number Of Main Breakers:
- 0
- Number Of Meter Positions:
- 1 Position
- Number Of Receptacles:
- 0
- Phase:
- 1 Phase
- Product Family Code:
- 4T12
- Standard:
- UL Listed;Type 3R
- Terminal:
- Lay in
- Unspsc Number:
- 39121102
- Voltage Rating:
- 600 Volts Alternating Current
- Width:
- 8 IN
- Product Type:
- Ringless Meter Socket
- Product Subgroup:
- Meter Socket
- Product Group:
- Metering Equipment
- Department:
- Electrical
- Product Size:
- 3.313L x 8W x11.5H
- Product Length:
- 3.313 IN
- Mounting Method:
- Surface Mount
- Product Height:
- 11.5 IN
