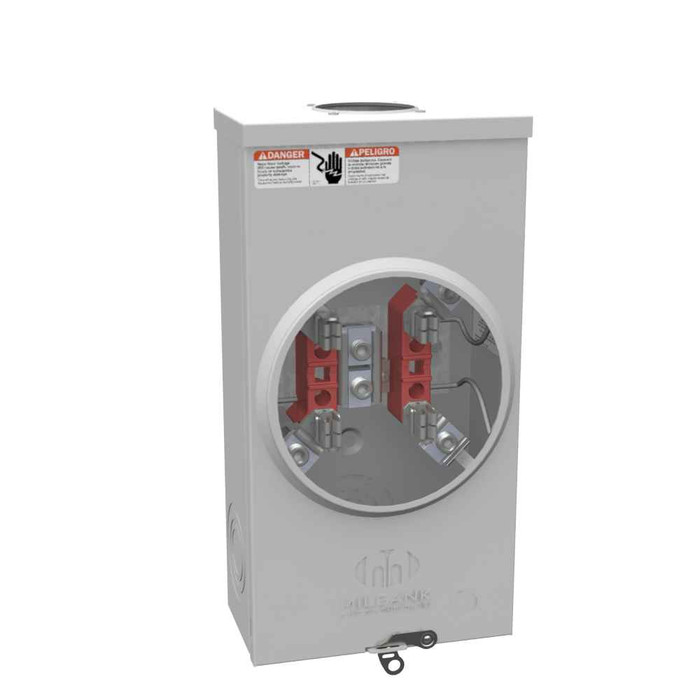

Milbank 4.125x8x15.5 G90 Galvanized Steel Ringless Meter Socket
Professional-Grade 4 Terminal Meter Socket with Horn Bypass
The Milbank 4 Terminal Ringless Meter Socket delivers professional-grade metering performance for Rochester Gas and Electric applications. This G90 galvanized steel meter socket features small hub opening with triplex ground and horn bypass designed for electrical contractors and utility professionals, providing the reliable performance and UL Listed safety that electrical professionals demand.
Professional Features & Benefits
Advanced Metering Design
- 4 Terminal Configuration - Provides reliable electrical connections for single phase metering applications
- Ringless Construction - Eliminates need for meter rings while maintaining secure meter retention
- Small Hub Opening - Accommodates overhead cable entry with proper sealing and protection
- Horn Bypass Provision - Enables safe meter testing and maintenance without service interruption
Safety & Compliance Features
- UL Listed Certification - Meets rigorous safety standards for electrical metering equipment
- Type 3R NEMA Rating - Provides weather-resistant protection for outdoor installations
- Triplex Ground System - Ensures proper grounding for safe electrical operation and code compliance
Technical Specifications
Compact 4.125x8x15.5 inch dimensions with G90 galvanized steel construction and powder coat finish. Features 200 continuous ampere rating, 600 VAC voltage capacity, 60 Hz frequency rating, and glass polyester insulation. Accommodates 6 AWG to 350 kcmil conductors on both line and load sides with lay-in terminal design. Surface mount configuration with single position metering capability.
Installation Process
- Mount meter socket securely to appropriate surface using proper fasteners and ensure level installation
- Connect overhead service conductors to line side terminals using proper torque specifications
- Install load side conductors to designated terminals ensuring proper wire sizing and connections
- Verify triplex ground connections are properly bonded to grounding electrode system
- Test horn bypass functionality to ensure proper operation for future maintenance needs
- Install appropriate meter and verify proper seating in ringless socket design
Professional Applications
Ideal for:
- Utility Metering Systems - Rochester Gas and Electric approved installations and service upgrades
- Residential Service Entrances - Single phase homes requiring reliable meter socket solutions
- Commercial Buildings - Small commercial facilities with 200 amp electrical service requirements
- Overhead Service Applications - Properties with aerial utility connections and small hub requirements
- Meter Replacement Projects - Upgrading existing meter installations to modern ringless technology
- New Construction - Residential and light commercial electrical service installations
- Service Panel Upgrades - Electrical system modernization requiring utility-approved metering
- Maintenance Applications - Installations requiring horn bypass for safe meter testing procedures
G90 Galvanized Steel Advantage
Milbank's G90 galvanized steel construction with powder coat finish provides superior corrosion resistance and long-lasting durability for outdoor electrical metering applications. The galvanized coating offers excellent protection against environmental elements while the powder coat finish provides additional weather resistance and professional appearance for utility installations.
Why Choose Milbank Quality?
Milbank's commitment to UL Listed safety, reliable performance, and utility compliance standards makes this meter socket the preferred choice for electrical professionals. With Rochester Gas and Electric approval and comprehensive safety features, this meter socket delivers the dependable metering solutions that contractors and utility companies trust for critical electrical infrastructure.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200 Continuous Ampere
- Application:
- Meter Socket
- Bypass Provision:
- Horn Bypass
- Cable Entry:
- Overhead
- Equipment Ground:
- Triplex Ground
- Frequency Rating:
- 60 Hertz
- Height:
- 15.5 IN
- Hub Closing Plate:
- Small Hub Opening
- Insulation:
- Glass Polyester
- Line Side Wire Range:
- 6 AWG - 350 kcmil
- Load Side Wire Range:
- 6 AWG - 350 kcmil
- Main Breaker Size:
- No Main Breaker
- Material:
- G90 Galvanized Steel with Powder Coat Finish
- Number Of Jaws:
- 4 Terminal
- Number Of Main Breakers:
- 0
- Number Of Meter Positions:
- 1 Position
- Number Of Receptacles:
- 0
- Phase:
- 1 Phase
- Product Family Code:
- 4T20
- Special Features:
- Rochester Gas and Electric
- Standard:
- UL Listed;Type 3R
- Terminal:
- Lay in
- Unspsc Number:
- 39121102
- Voltage Rating:
- 600 Volts Alternating Current
- Width:
- 8 IN
- Product Type:
- Ringless Meter Socket
- Product Subgroup:
- Meter Socket
- Product Group:
- Metering Equipment
- Department:
- Electrical
- Product Size:
- 4.125L x 8W x15.5H
- Product Length:
- 4.125 IN
- Mounting Method:
- Surface Mount
