Keystone 40W LED Canopy Light ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$260.04
$252.07

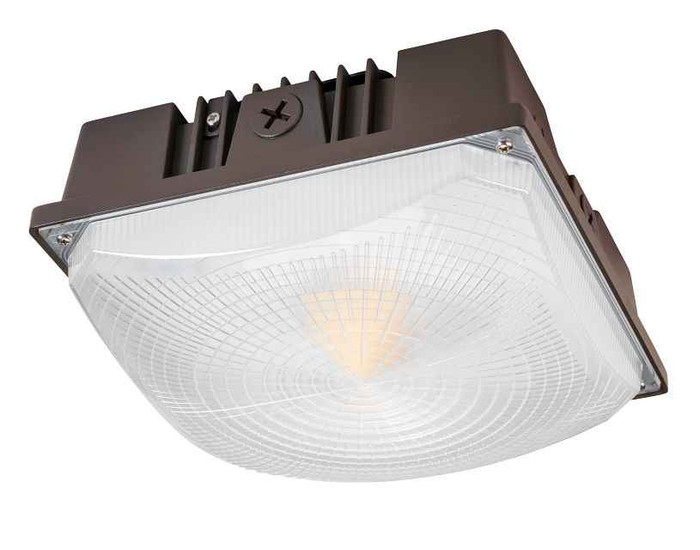

Keystone 40W LED Canopy Light with Power & Color Select 8" Square Bronze Housing 0-10V Dimming

Keystone 40W LED Canopy Light with Power & Color Select 8" Square Bronze Housing 0-10V Dimming

(No reviews yet) Write a Review

Model: KT-CLED40PS-S1-8CSB-VDIM
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$260.04
$252.07
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Keystone 40W LED Canopy Light with Power & Color Select

Professional LED canopy lighting with selectable power and color temperature control

The Keystone LED Canopy Light delivers versatile illumination with selectable power options (40/30/20W), color temperature control (3000/4000/5000K), and corresponding lumen output adjustment (5600/4200/2800). This professional-grade fixture features an 8" square bronze housing with 0-10V dimming capability and twist-in sensor ready design for enhanced operational flexibility.

Professional Features & Benefits

  • Selectable Power Control (40/30/20W): Optimize energy consumption and light output for specific application requirements while maintaining installation flexibility.
  • Color Temperature Selection (3000/4000/5000K): Choose warm, neutral, or cool white lighting to match ambient conditions and visual comfort preferences.
  • Variable Lumen Output (5600/4200/2800): Corresponding light output adjustment ensures proper illumination levels across all power settings.
  • 0-10V Dimming Compatibility: Integrate with professional lighting control systems for precise brightness adjustment and energy management.
  • 160� Beam Angle: Wide light distribution pattern provides comprehensive area coverage with minimal fixture count requirements.
  • DLC Premium Qualification: Meets utility rebate program requirements for enhanced project economics and energy efficiency recognition.
  • 50,000 Hour Rated Life: Extended operational lifespan reduces maintenance frequency and total cost of ownership over the fixture lifecycle.

Technical Specifications

  • Accessory Device: No
  • Beam Angle: 160
  • Cec T20: No
  • Cri: >80
  • Dimming: 0-10V
  • Dlc: No
  • Dlc Premium: Yes
  • Energy Star: No
  • Housing Color: Bronze
  • Input Voltage: 120-277
  • Led Module Included: No
  • Mounting Method: Ceiling Mount
  • Nominal Size: 8 in Square
  • Not Suitable For Sale In California: No
  • Product Weight: 10.85 lbs
  • Rated Life Hours: 50000
  • Selectable Color Temperature: 3000/4000/5000
  • Selectable Lumens Output: 5600/4200/2800
  • Selectable Power: 40/30/20
  • Sensor Type: Photocell
  • T24 Ja8: No
  • Ul: No
  • Unique Features: Twist in Sensor Ready
  • Warranty Years: 5
  • Wireless Control: No

Professional Applications

  • Commercial Building Canopies
  • Retail Store Overhangs
  • Gas Station Canopies
  • Parking Structure Coverage
  • Industrial Facility Entrances
  • Multi-Unit Residential Walkways
  • Professional Office Building Exteriors

Why Choose Keystone Quality?

Keystone delivers reliable LED canopy lighting solutions with DLC Premium qualification and comprehensive 5-year warranty coverage. The bronze housing construction and twist-in sensor ready design provide professional-grade durability and operational flexibility for demanding commercial applications.

Manufacturer Resources

Product Specs

Accessory Device:
No
Beam Angle:
160
Cec T20:
No
Cri:
>80
Dimming:
0-10V
Dlc:
No
Dlc Premium:
Yes
Energy Star:
No
Housing Color:
Bronze
Input Voltage:
120-277
Led Module Included:
No
Mounting Method:
Ceiling Mount
Not Suitable For Sale In California:
No
Product Weight:
10.85 lbs
Rated Life Hours:
50000
Selectable Color Temperature:
3000/4000/5000
Selectable Lumens Output:
5600/4200/2800
Selectable Power:
40/30/20
Sensor Type:
Photocell
T24 Ja8:
No
Ul:
No
Unique Features:
Twist in Sensor Ready
Warranty Years:
5
Wireless Control:
No
Product Nominal Size:
8 in Square
Department:
Electrical

Keystone KT-CLED40PS-S1-8CSB-VDIM – Frequently Asked Questions

1) Will the Keystone KT-CLED40PS-S1-8CSB-VDIM canopy light run on 208V or 277V building power?
Input voltage is 120-277V, so the fixture runs on 120, 208, 240 or 277V without ordering a different model. That single range is what lets you standardize one part number across a retail site on 120V and a commercial canopy on 277V.
2) How do I set the wattage and color temperature on this Keystone power and color select canopy light?
Both are selected at the fixture, not at order time. Power is switchable between 40W, 30W and 20W, and color temperature between 3000K, 4000K and 5000K, with lumen output tracking the wattage at 5600, 4200 or 2800 lumens. One SKU covers nine combinations, which is why contractors use it to cover a whole site and set each opening on site.
3) Does this 8 inch square canopy light come with a photocell, or do I have to add one?
The housing is twist-in sensor ready and the sensor type it accepts is a photocell, but the sensor itself is a separate item. If you want dusk-to-dawn operation on a walkway or gas station canopy, budget a twist-in photocell alongside the fixture.
4) Can I put this Keystone canopy fixture on an existing 0-10V dimming control system?
Dimming is 0-10V, so it ties into a standard low-voltage control system or panel with a separate pair of control conductors run to the fixture. There is no wireless control built in, so anything networked has to come from the control side, not the fixture.
5) How is this 8 inch canopy light mounted, and how much does it weigh?
Ceiling mount, into an 8 inch square footprint, with a fixture weight of 10.85 lbs. At that weight you want it landing on solid canopy decking or a box rated for the load, not an unsupported soffit panel.
6) Will one 40W canopy light cover a wide soffit, or do I need them close together?
Beam spread is 160 degrees, a very wide distribution, so light throws out across the canopy rather than punching straight down. On a low canopy that lets you space fixtures further apart and run fewer of them; on a tall structure you lose vertical punch and will want more fixtures or a higher wattage setting.
7) Is the color quality good enough for a retail entrance or fuel canopy?
CRI is greater than 80, which is the normal commercial threshold for exterior and entry lighting. Pair that with the 3000K setting for a warmer hospitality or multi-family walkway look, or 5000K where you want the crisp high-contrast appearance buyers expect under a fuel canopy.
8) How long before I have to relamp this LED canopy fixture?
Rated life is 50,000 hours. The LED module is integral and not supplied as a replaceable component, so this is a fixture you replace rather than relamp, which is the trade-off for the sealed canopy design.
9) Will the bronze housing match the other canopy fixtures on my property?
The housing is bronze with an 8 inch square profile. That is the common finish for commercial soffit and walkway fixtures, so it generally sits well alongside existing bronze canopy and wall pack hardware, but compare it against a sample on site if the building has a specific architectural bronze spec.
