Metallics JFMP67SS 5/16-18 x 1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

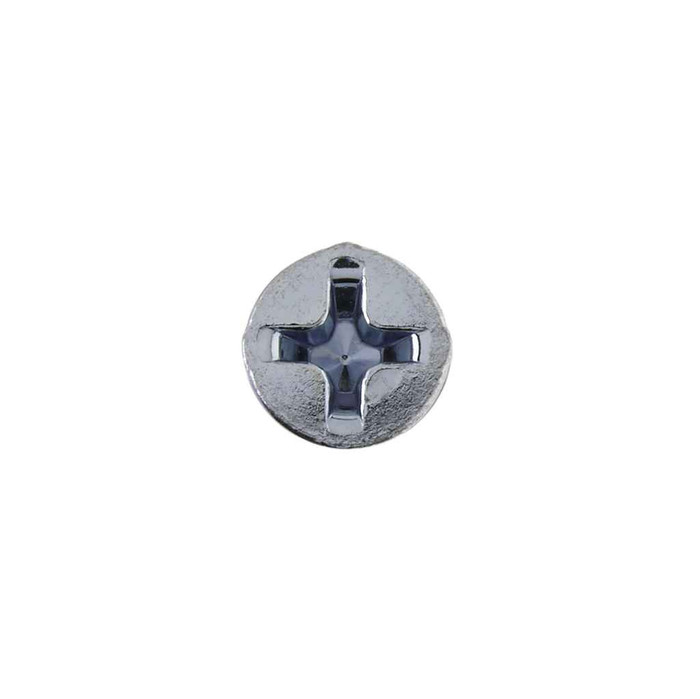

Metallics JFMP67SS 5/16-18 x 1-1/2 in. Flat Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JFMP67SS 5/16-18 x 1-1/2 in. Flat Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JFMP67SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
5/16-18 x 1-1/2 in. Flat Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Features

    • 18-8 Stainless Material
    • Flat head with Phillips Drive
    • Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance, in food processing machinery and refrigeration equipment.
    • Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
    • 5/16-18 Diameter, 1-1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#4
Fastener Head Height:
0.165 - 0.191 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.556 - 0.597 in.
Fastener Length:
1/1/02
Gaging Diameter:
0.539
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.205
Phillips Recess Diameter:
0.358
Phillips Recess Width:
0.061
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
2.91 lbs
Product Width:
3.5 in
Protrusion Gaging Diameter:
0.034 - 0.057 Above
Sub Division:
Electrical-E H2
Tensile Strength:
3150 lb minimum
Thread Per Inch:
18
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JFMP67SS – Frequently Asked Questions

1) Will a 5/16-18 machine screw thread into my existing 5/16 UNC tapped hole or nut?
Yes. The Metallics JFMP67SS is a 5/16-18 UNC screw, 18 threads per inch, cut to ANSI/ASME B1.1. That is the standard coarse thread for 5/16 inch fasteners, so it mates with any 5/16-18 tapped hole, nut, or insert. It will not thread into a 5/16-24 fine-thread hole.
2) What size Phillips driver bit do I need for these 5/16-18 stainless screws?
A #4 Phillips bit. The recess on the JFMP67SS measures 0.358 in. diameter, 0.205 in. deep, with a 0.061 in. slot width. A #3 bit will cam out and chew the recess on a screw this size, so stock the #4 before you start the run.
3) Can I use these stainless machine screws outdoors or in a washdown area?
18-8 stainless is the right choice for general atmospheric corrosion resistance, which is why these screws get specified in food processing machinery and refrigeration equipment where moisture and cleaning chemicals are routine. 18-8 also holds its strength better than plain steel as operating temperature rises. For marine immersion or heavy chloride exposure, 18-8 is not the top tier of stainless.
4) How are these sold, loose or in a pack?
They come in a jar of 100, which is the order minimum. Full jar weight is 2.91 lbs. Other sizes and quantities can be arranged by request.
5) Will a 1-1/2 inch screw be long enough for my assembly?
On a flat head screw the 1-1/2 in. length is measured including the head, since the head sits flush in the countersink. So your usable grip is the full 1-1/2 in. minus the material you are countersinking into. Add up panel thickness plus the depth of thread engagement you need, and if the total runs past 1-1/2 in. you need a longer screw in the same 5/16-18 thread.
6) Do these screws meet Buy American or ARRA requirements for a government job?
The JFMP67SS carries a C designation for both Buy American and ARRA compliance, with country of origin listed as China. For a federally funded project with strict domestic sourcing language, confirm that designation against your contract's specific clause before you commit the material.
