Metallics JFMP90SS 8-32 x 2-1/...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

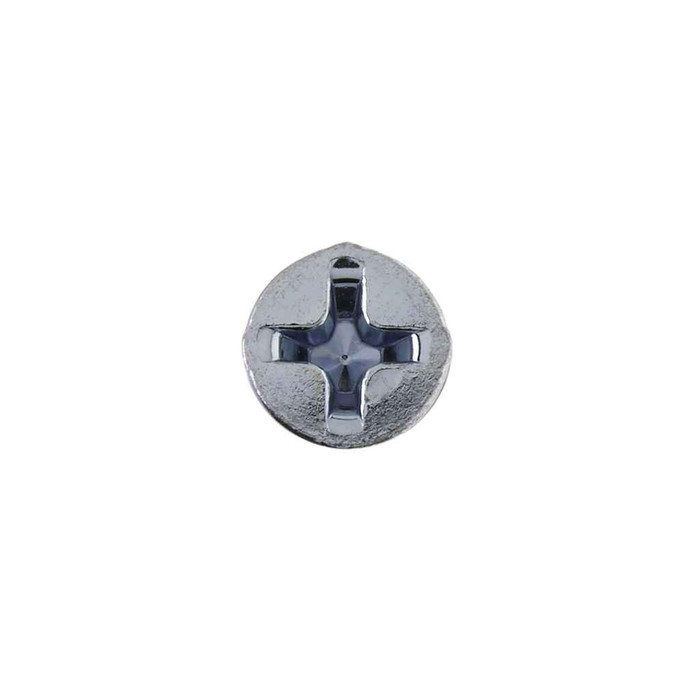

Metallics JFMP90SS 8-32 x 2-1/2 in. Flat Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JFMP90SS 8-32 x 2-1/2 in. Flat Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JFMP90SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8-32 x 2-1/2 in. Flat Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Features

    • Flat head with Phillips Drive
    • Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance, in food processing machinery and refrigeration equipment.
    • Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
    • 8-32 Diameter, 2-1/2" Length
    • 18-8 Stainless Material

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.084 - 0.1 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.285 - 0.312 in.
Fastener Length:
2/1/02
Gaging Diameter:
0.267
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.11
Phillips Recess Diameter:
0.182
Phillips Recess Width:
0.03
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
1.17 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.023 - 0.039 Above
Sub Division:
Electrical-E H2
Tensile Strength:
850 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JFMP90SS – Frequently Asked Questions

1) Will an 8-32 machine screw thread into my existing device or box tapped holes?
The Metallics JFMP90SS is an 8-32 UNC machine screw cut to the ANSI/ASME B1.1 thread standard, 32 threads per inch. Any 8-32 tapped hole, device yoke, or box ear will take it. It is a machine thread, not a self-tapping screw, so the hole has to already be tapped.
2) What size Phillips bit drives the Metallics JFMP90SS screws?
A #2 Phillips. The recess is 0.182 in. across, 0.11 in. deep, with a 0.03 in. slot width. Stainless cams out more readily than plated steel, so keep the #2 bit seated and the driver straight rather than running it at high speed.
3) Are these stainless screws OK for outdoor, wash-down, or refrigeration work?
18-8 stainless is specified for general atmospheric corrosion resistance, and Metallics calls out food processing machinery and refrigeration equipment as typical uses. It also holds strength better than plain steel at elevated operating temperatures. For damp mechanical rooms, exterior boxes, and kitchen equipment it is the right material choice over zinc-plated steel.
4) Is 2-1/2 inches too long for mounting a device in a standard box?
At 2-1/2 in. under the head, these are a long-reach 8-32. They are meant for deep mud rings, thick plaster rings, stacked spacers, or running through an extension to reach the tapped ear. For a flush device in a standard 1-1/2 in. deep box, a 2-1/2 in. screw will bottom out or leave thread hanging inside the box, so step down to a shorter 8-32.
5) Do these Metallics machine screws meet Buy American or ARRA requirements for a public project?
Metallics lists the JFMP90SS as both ARRA compliant and Buy American compliant. Country of origin is recorded as multiple, which is normal for this family, so if your specification requires a single named origin on the submittal, confirm the origin on the lot you receive.
6) How are the Metallics JFMP90SS screws packaged and what is the minimum I can buy?
They ship in a jar of 100, which is also the order minimum, one count unit. The packed jar weighs 1.17 lbs. Useful quantity for a service van where you are pulling a few long 8-32s at a time rather than a bulk box.
