Metallics JRM18 8-32 x 3/8 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.07
$0.07

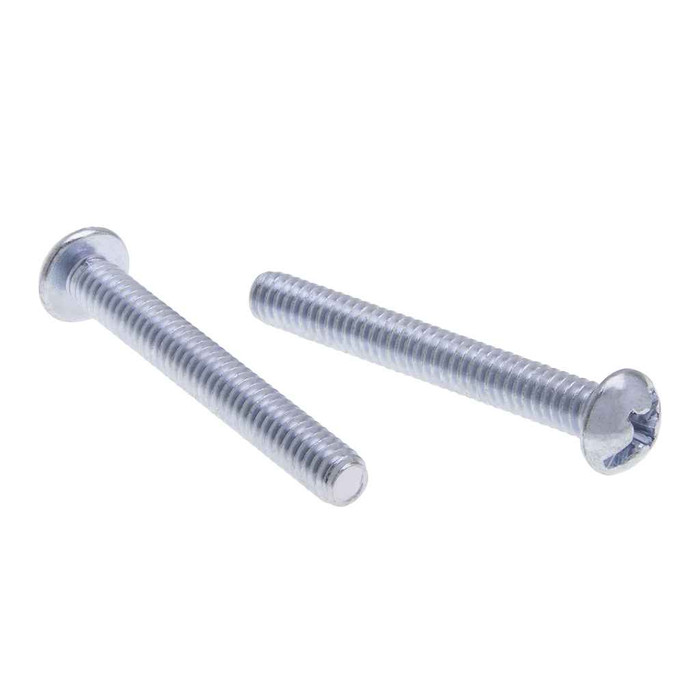

Metallics JRM18 8-32 x 3/8 in. Round Head Combo Machine Screws - Steel Zinc - 100qty

Metallics JRM18 8-32 x 3/8 in. Round Head Combo Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JRM18
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.07
$0.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8-32 x 3/8 in. Round Head Combo Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • In 1985, Metallics was the first fastener company in America to offer a full line of Combo’s! | Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Round head with slotted and Phillips Drive
    • 8-32 Diameter, 3/8" Length
    • Two Drives in one Head
    • Steel Zinc Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Slotted/Phillips
Driver Size:
#2
Fastener Head Height:
0.107 - 0.12 in.
Fastener Head Type:
Round
Fastener Head Width:
0.287 - 0.309 in.
Fastener Length:
8-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.075 - 0.101
Phillips Recess Diameter:
0.165 - 0.178
Phillips Recess Width:
0.03
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.34 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.064 - 0.090
Slot Depth:
0.058 - 0.077
Slot Width:
0.045 - 0.054
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
JRM
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JRM18 – Frequently Asked Questions

1) Do these Metallics screws meet Buy American or ARRA requirements for a government job?
No. The JRM18 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. On a federally funded project with domestic sourcing language in the spec, these will not qualify.
2) Can I drive the JRM18 combo screw with a Phillips bit, or do I need a flat blade?
Either one. The head is a combo, slotted and Phillips in the same recess, so a flat blade or a #2 Phillips both seat. Metallics calls out #2 as the driver size. Handy when one tech is on a cordless with a Phillips bit and the next is using a flat screwdriver out of a pouch.
3) How much room does the round head on these 8-32 screws take up above the surface?
Head height runs 0.107 to 0.12 in. and head width 0.287 to 0.309 in., so the dome sits roughly an eighth of an inch proud with a head just under 5/16 across. If you need the head flush or sub-flush in a countersunk plate, a round head is the wrong profile; go flat or oval head instead.
4) Are the Metallics JRM18 screws strong enough for structural or load-bearing use?
These are low-carbon steel machine screws, AISI 1006 to 1022, with 60,000 psi minimum tensile and hardness in the Rockwell B70 to B100 band. That is standard machine screw material for mounting hardware, devices and covers. For a load-rated or graded bolted connection, specify a graded hex cap screw or a socket screw instead.
5) Is zinc plated steel okay for outdoor or damp locations, or should I use stainless?
The JRM18 is zinc plated steel. Zinc plating handles dry interior and normally dry service well, and it is what most device and panel screws use. For wet locations, exterior work, or anywhere with washdown or coastal exposure, move to a stainless 8-32 machine screw in the same size.
6) Is a 3/8 inch machine screw long enough, or will it bottom out before it grips?
3/8 inch of length gives you only a thin stack of material to work with, so it suits a cover plate, a strap, or a bracket onto a tapped hole or a nut right behind it. If you are going through a plate plus a spacer or a mud ring extension, step up to a longer 8-32 in the same series; Metallics lists other sizes in the JRM line.
7) How are Metallics JRM18 machine screws packaged and what is the smallest quantity?
They come in a jar of 100, and 100 is the order minimum. Useful on a service van or a shop bench where you are pulling a few at a time rather than opening a bulk box.
8) What does the slot and Phillips recess geometry measure on these combo screws?
Slot width is 0.045 to 0.054 in. with a slot depth of 0.058 to 0.077 in. The Phillips side has a recess diameter of 0.165 to 0.178 in., recess width 0.03 in., recess depth 0.075 to 0.101 in., and gaging penetration of 0.064 to 0.090 in. A #2 Phillips is the correct bit for that recess, and a 3/16 class cabinet blade seats in the slot.
