Metallics CPD3V 9 x 2-1/2 in. ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.66
$0.66

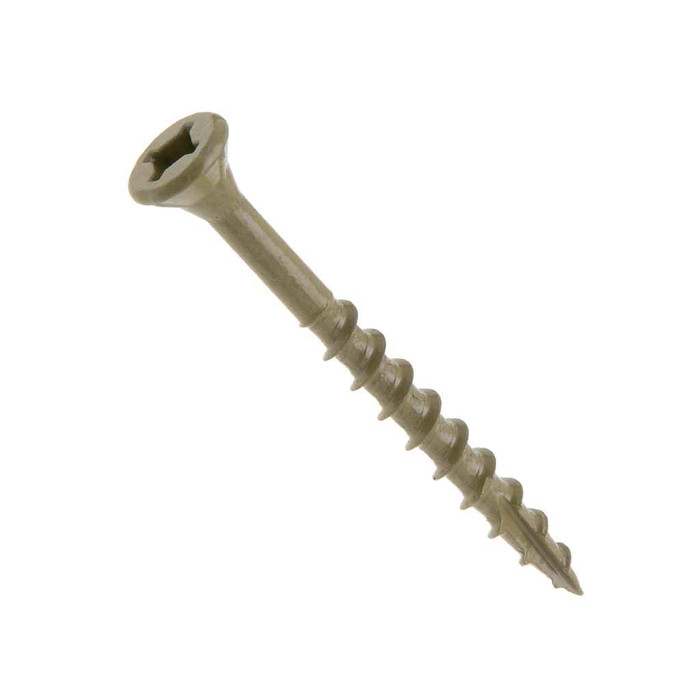

Metallics CPD3V 9 x 2-1/2 in. Bugle Head Square & Phillips Deck Screws - Steel Ceramic - Type 17 - Coarse Threads - 500qty

Metallics CPD3V 9 x 2-1/2 in. Bugle Head Square & Phillips Deck Screws - Steel Ceramic - Type 17 - Coarse Threads - Each

(No reviews yet) Write a Review

Model: CPD3V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.66
$0.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
9 x 2-1/2 in. Bugle Head Square & Phillips Deck Screws - Steel Ceramic - Type 17 - Coarse Threads - 500qty

  • Features

    • Ceramic Polymer Coating Protects Against Corrosion, Good wear resistance and can be used in pressure treated lumber, Excellent resistance to UV radiation, Flat Head With Nibs, Combo Square-Phillips Drive
    • 9 Diameter, 2-1/2" Length
    • Bugle Head with Square & Phillips Drive
    • Includes Free Power Bit
    • Steel Ceramic Coated

  • Additional Notes

    • Other sizes and quantities available by request | In the abscence of a single industry standard for Bugle Heads, these dimensions are offered as a guide; slight deviations are acceptable. | In the abscence of a single industry standard for Deck Screws, these dimensions are offered as a guide; slight deviations are acceptable. | There is no single standard for deck screw dimensions. These values are offered as a guide; deviations from these specifications may occur.

  • Kit Components

    • #1 Drive Power Bit

Manufacturer Resources

Product Specs

Minimum Purchase:
500 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Square/Phillips
Driver Size:
#2
Fastener Head Height:
0.020 - 0.039 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.334 - 0.363 in.
Fastener Length:
2/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Sq_Phil_Type_17_Coarse_Thrd_Deck_Scr.pdf
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
EA
Pack Type:
Box
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.176 - 0.201
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
5.79 lbs
Product Width:
4.5 in
Screw Point Type:
Type 17
Square Recess Depth:
0.064 - 0.075
Square Recess Width:
0.110 - 0.113
Sub Division:
Electrical-E H2
Thread Per Inch:
8
Thread Spacing:
Coarse
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Deck Screw
Type2:
Deck Screw
Series:
CPD
Product Finish:
Ceramic Polymer Coating
Product Details:
Deck Screw
Product Material:
Steel Ceramic

Metallics CPD3V – Frequently Asked Questions

1) Can these Metallics CPD3V deck screws be used in pressure treated lumber?
Yes. The CPD3V #9 x 2-1/2 inch deck screw carries a ceramic polymer coating that resists corrosion and is rated for use in pressure treated lumber, which is where uncoated steel screws fail fastest. The same coating is called out for UV resistance, so it holds up on exposed deck surfaces and outdoor framing.
2) Are these Metallics deck screws Buy American or ARRA compliant for a government job?
No. The CPD3V deck screw is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your project carries domestic sourcing requirements, this part will not satisfy them.
3) What driver bit do I need for the CPD3V bugle head deck screw, and does one come with it?
The head takes a combination square/Phillips recess, so either a #2 square drive or a #2 Phillips will seat it. The specified driver size is #2. A power bit is included with the box, listed as a #1 drive power bit.
4) Is this a coarse thread screw suitable for wood, or a fine thread for composite?
Coarse thread, 8 threads per inch, UNC form. Coarse threads are what you want in solid wood and pressure treated framing, since the deeper thread grabs the soft fiber. For hard composite or metal substrates a different fastener is the right call.
5) How many Metallics CPD3V screws come in a box?
They are sold in a box with a 500-piece minimum, each priced per screw. So an order is placed in multiples of 500 pieces.
6) Do I need to pre-drill before driving these screws near the end of a deck board?
The Type 17 point on the CPD3V cuts a relief ahead of the threads, which reduces splitting and generally lets you drive without pre-drilling in softwood. In dense or brittle hardwood, or within an inch of a board end, a pilot hole is still the safer move.
7) How big is the bugle head on a #9 deck screw, and will it sink flush?
Head width runs 0.334 to 0.363 in. with a head height of 0.020 to 0.039 in. That shallow, wide bugle profile is what lets it self-countersink flush in softwood decking without a separate countersink bit. Bear in mind there is no single industry standard for bugle head dimensions, so slight deviation between lots is normal.
8) Are deck screws like the CPD3V used for anything besides decking?
The field application for the CPD3V covers electrical, plumbing, and HVAC work, so trades use it as a general wood fastener for mounting backing, straps, blocking and equipment to framing, not just deck boards. The ceramic coating makes it workable where treated lumber or outdoor exposure is involved.
9) What does a box of 500 of these screws weigh for shipping?
The CPD3V box is listed at 5.79 lbs. Carton dimensions are given as 4.5 x 4.5 x 7.25 in.
