Metallics JCPD2 8 x 2 in. Bugl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.60
$0.60

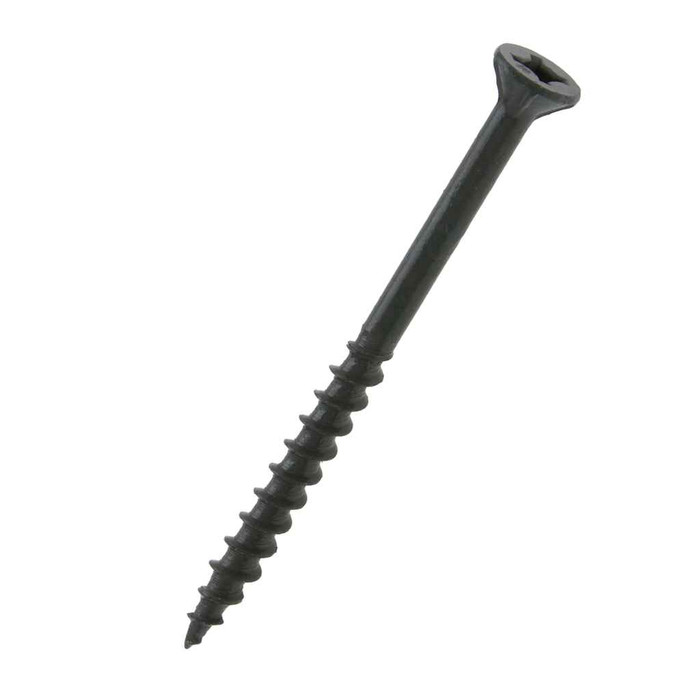

Metallics JCPD2 8 x 2 in. Bugle Head Square & Phillips Deck Screws - Steel Ceramic - Type 17 - Coarse Threads - 100qty

Metallics JCPD2 8 x 2 in. Bugle Head Square & Phillips Deck Screws - Steel Ceramic - Type 17 - Coarse Threads - Each

(No reviews yet) Write a Review

Model: JCPD2
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.60
$0.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 2 in. Bugle Head Square & Phillips Deck Screws - Steel Ceramic - Type 17 - Coarse Threads - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | In the abscence of a single industry standard for Bugle Heads, these dimensions are offered as a guide; slight deviations are acceptable. | In the abscence of a single industry standard for Deck Screws, these dimensions are offered as a guide; slight deviations are acceptable. | There is no single standard for deck screw dimensions. These values are offered as a guide; deviations from these specifications may occur.

  • Features

    • Remains resistent to corrosion for appoximately twice as long as do dacrotized steel deck screws.
    • Ceramic Polymer Coating Protects Against Corrosion, Good wear resistance and can be used in pressure treated lumber, Excellent resistance to UV radiation, Flat Head With Nibs, Combo Square-Phillips Drive
    • Steel Ceramic Coated
    • Bugle Head with Square & Phillips Drive
    • 8 Diameter, 2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Square/Phillips
Driver Size:
#2
Fastener Head Height:
0.020 - 0.039 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.315 - 0.363 in.
Fastener Length:
2
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Sq_Phil_Type_17_Coarse_Thrd_Deck_Scr.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.176 - 0.201
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
0.89 lbs
Product Width:
3 in
Screw Point Type:
Type 17
Square Recess Depth:
0.064 - 0.075
Square Recess Width:
0.110 - 0.113
Sub Division:
Electrical-E H2
Thread Per Inch:
8 to 10
Thread Spacing:
Coarse
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Deck Screw
Type2:
Deck Screw
Series:
CPD
Product Finish:
Ceramic Polymer Coating
Product Details:
Deck Screw
Product Material:
Steel Ceramic

Metallics JCPD2 – Frequently Asked Questions

1) Can the Metallics JCPD2 deck screw be used in pressure treated lumber?
Yes. The JCPD2 carries a ceramic polymer coating rated for use in pressure treated lumber, and it holds up against corrosion roughly twice as long as a dacrotized steel deck screw. The coating also resists UV, so it suits exposed deck boards and outdoor framing rather than just dry interior work.
2) Do I have to pre-drill for these deck screws?
The JCPD2 uses a Type 17 point, which is the auger-style tip with a slot cut at the end to clear chips, so it starts and pulls into wood without a pilot hole in most softwood and treated decking. Thread is coarse UNC spacing at 8 to 10 threads per inch, which is what you want in wood rather than metal.
3) Will a 2 inch deck screw be long enough for 5/4 decking over joists?
Fastener length on the JCPD2 is 2 in. with a #8 diameter. Over nominal 5/4 decking (about 1 in. actual), that leaves roughly an inch of thread biting into the joist, which is the usual target for a single deck board. For doubled material or thicker 2x stock, step up to a longer screw in the same CPD series.
4) Are these Metallics deck screws Buy American or ARRA compliant for a government job?
No. The JCPD2 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your project specification carries a domestic sourcing requirement, this screw will not satisfy it.
5) What driver bit do I need for an 8 x 2 in. Metallics bugle head deck screw?
A #2 bit. The head takes a combination square/Phillips recess, so either a #2 square drive or a #2 Phillips will run it. Square recess measures 0.110 to 0.113 in. wide and 0.064 to 0.075 in. deep; the Phillips recess is 0.176 to 0.201 in. diameter at 0.124 in. deep. Crews who prefer square drive for less cam-out can use it without buying a different screw.
6) Will the bugle head sit flush without countersinking?
The bugle head is made to self-countersink in wood, and this one measures 0.315 to 0.363 in. across with a head height of 0.020 to 0.039 in. The head also has nibs that cut the fibers as it seats, so it draws down flush in decking without a separate countersink. Note there is no single industry standard for bugle head dimensions, so slight deviation from those figures is normal.
7) How are the Metallics JCPD2 screws packaged and what is the minimum order?
They ship in a jar of 100, and 100 is the order minimum. Jar weight is 0.89 lbs. Other sizes and quantities in the CPD series are available by request.
