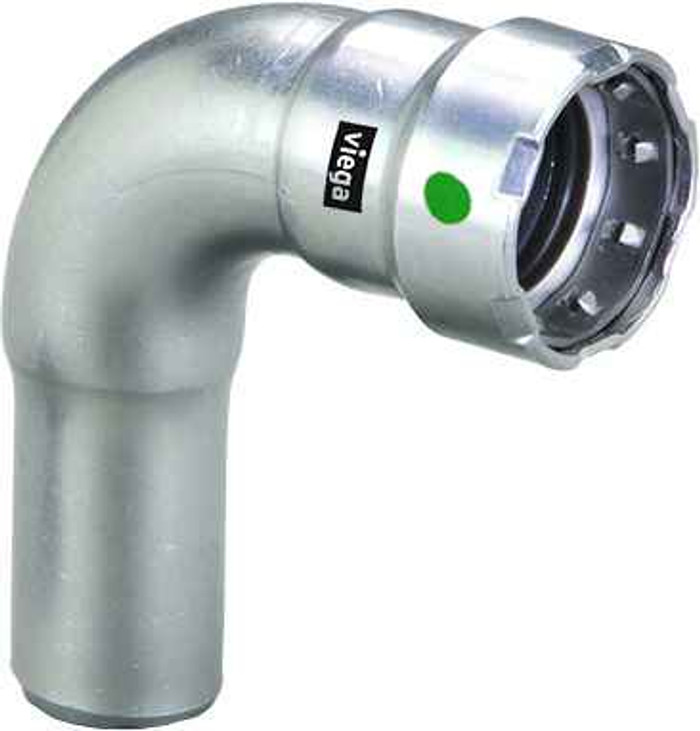

Viega 90045 MegaPress 90° street elbow Smart Connect technology 316 stainless steel, 1-1/2'' x 1-1/2''

It is 316 stainless steel, so it presses onto 1-1/2 inch stainless pipe rather than black iron. If you are running carbon steel schedule pipe, you want the carbon steel MegaPress body instead, not this one. The 316 alloy is the choice where you have corrosive media or a washdown environment.

Order Viega 90045. The manufacturer also catalogs it as model 5116.1, and it is made in Germany. One part number covers the 1-1/2 x 1-1/2 configuration, so there is no size or finish option to specify.

The fitting itself measures 5.433 inches long, 5.118 inches wide and 2.437 inches high, and weighs 1.51 lbs. Lay that out against your joist bay or wall cavity before you commit, because the press ring and jaw need room beyond the fitting body to close square on the socket. The street end helps here, since it eliminates one coupling and one press joint compared with joining two socket-end fittings.

Smart Connect is the feature Viega builds into the press socket so an unpressed joint leaks visibly during pressure test rather than holding and failing later. On a large commercial run with dozens of joints, that is how you find the one your installer missed before the ceiling closes. It is part of the 90045 MegaPress fitting as supplied, not an accessory.

It is a press fitting on both ends, one press socket and one fitting end, with no threads. You need the matching press tool and jaw or ring for 1-1/2 inch MegaPress to make the joint. There is no solder cup and no NPT thread on either side, so it will not adapt to threaded pipe on its own; use a press-by-thread adapter for that transition.

316 stainless is the alloy specified for those environments because the added molybdenum resists chloride pitting better than 304. For food plants, coastal mechanical rooms, pool chemical rooms and washdown areas, this is the body material to use rather than carbon steel, which will surface rust once the coating is scratched.
