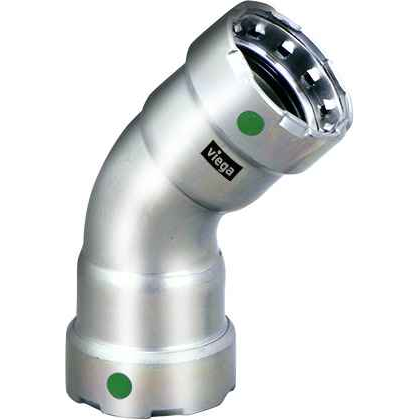

90070 Viega MegaPress 45° elbow Smart Connect technology 316 stainless steel, 1-1/2'' x 1-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 316 Stainless Steel
- Model Number:
- 5126
- Product Dimension:
- 1-1/2'' x 1-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 5.961"
- Product Height:
- 2.437"
- Product Weight:
- 1.228 lbs
- Product Width:
- 4.185"
- Product Material:
- 316 stainless steel
Viega V90070 – Frequently Asked Questions
1) Is the Viega 90070 elbow press on both ends, or does one side thread?
Both ends are press. The connection is listed as P1 x P2, meaning press by press, so you need a press tool with the correct 1-1/2 inch MegaPress jaw or ring at each joint. There is no threaded or soldered outlet on this fitting.
2) Will a 316 stainless MegaPress 45 elbow hold up in a corrosive or wash-down area?
316 stainless is the material here, which is the grade specified where chloride exposure, wash-down, or aggressive media would attack carbon steel. For plain iron pipe water or gas service inside a building, the carbon steel MegaPress fittings are the usual pick; the 316 version is what you order when the line or the environment calls for stainless.
3) Why pick a 45-degree elbow instead of two 90s on a MegaPress run?
A 45 like the 90070 lets you offset around an obstruction with less pressure drop and fewer joints than stacking 90s. It is also what you use to swing a branch into position without the sharp direction change. Each press joint is a crimp you have to make with the tool in a tight space, so halving them matters on congested work.
4) Does the Viega MegaPress 45 elbow include the sealing element, or is that separate?
The Smart Connect feature is built into the fitting's sealing element, so the elbow arrives ready to press. You supply the press tool and the correct 1-1/2 inch jaw or ring; nothing else is added to the fitting itself.
5) Where is the Viega 90070 MegaPress elbow made?
Germany. That matters on projects with country-of-origin reporting requirements, so it is worth noting on the submittal.
