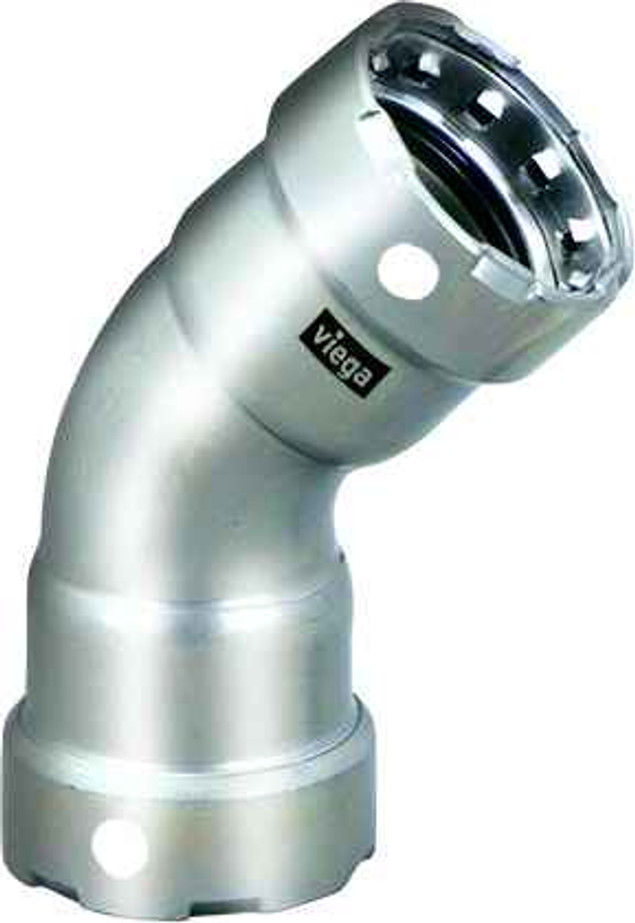

91775 Viega MegaPress 45° elbow Smart Connect technology 316 stainless steel, 1-1/2'' x 1-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1-1/2'' x 1-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 5.961"
- Product Height:
- 2.437"
- Product Weight:
- 1.236 lbs
- Product Width:
- 4.185"
- Product Material:
- 316 stainless steel
Viega 91775 – Frequently Asked Questions
1) What pipe size does the Viega MegaPress 91775 45-degree elbow fit?
The Viega MegaPress 91775 is a 1-1/2 inch by 1-1/2 inch 45-degree elbow, so both ends press onto 1-1/2 inch pipe. It is a press x press fitting (P1 x P2), meaning there is no threaded or soldered end, both sides are pressed with a MegaPress jaw.
2) Do I need to thread or weld the pipe for this Viega 45-degree elbow?
No. Both ends are press connections, so the pipe is cut, deburred, marked for insertion depth, and pressed with a press tool and the matching MegaPress jaw. No threading, no welding, no flame on the job. The press tool and jaws are separate equipment and are not part of the fitting.
3) Can I mix this stainless Viega elbow into a carbon steel MegaPress run?
Stick to the stainless line through a stainless run. The 91775 is 316 stainless and MegaPress carbon steel and stainless fittings use different sealing elements and are specified for different pipe materials, so match the fitting family to the pipe you are pressing rather than mixing them in one joint.
4) What is Smart Connect on the Viega MegaPress 91775?
Smart Connect is Viega's feature that makes an unpressed connection show itself during pressure testing, so an elbow that got missed in a run leaks visibly instead of hiding behind a wall. It is built into the 91775 45-degree elbow, not an option you add.
5) How much room does the Viega 91775 45-degree elbow take up in a tight chase?
Overall the fitting measures 5.961 x 4.185 x 2.437 inches and weighs 1.236 lbs. Use those numbers when you are laying out an offset in a chase or joist bay, and remember you also need clearance around the fitting for the press jaw to close on both ends.
