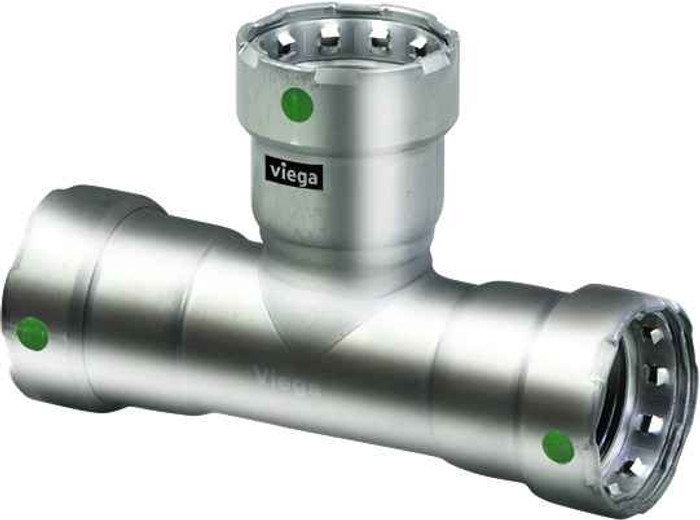

90145 Viega MegaPress tee Smart Connect technology 316 stainless steel, 1-1/2'' x 1-1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1-1/2'' x 1-1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 6.953"
- Product Height:
- 2.437"
- Product Weight:
- 1.549 lbs
- Product Width:
- 3.752"
- Product Material:
- 316 stainless steel
Viega 90145 – Frequently Asked Questions
1) What pipe sizes does the Viega MegaPress 90145 tee connect?
The Viega 90145 MegaPress tee is a reducing tee sized 1-1/2 inch x 1-1/2 inch x 1/2 inch, so the run is 1-1/2 inch on both ends and the branch outlet drops to 1/2 inch. All three ends are press connections (P1 x P2 x P3), meaning no end is threaded or sweated.
2) Is the Viega 90145 tee carbon steel or stainless?
316 stainless steel, not carbon steel. That matters if you are running the branch in a corrosive or wash-down environment, or where the line carries something that would attack a black iron fitting. Viega also builds MegaPress fittings in carbon steel for standard black iron pipe, so if you are tying into plain carbon steel pipe on a compressed air or gas line, order the carbon steel version instead of the 316 body.
3) Do I need to thread the pipe to install a MegaPress tee?
No threading and no cutting of threads. The 90145 is a press fitting with all three outlets as press ends, so the pipe is cut, deburred, marked for insertion depth, and pressed with the matching MegaPress jaw. That is the main reason crews choose it over a threaded tee on an occupied building: no hot work and no pipe machine on site.
4) What does Smart Connect do on a Viega MegaPress fitting?
Smart Connect is a feature of the sealing element that lets an unpressed connection leak intentionally during pressure test, so you find the joint you missed instead of discovering it after the ceiling is closed. On a 1-1/2 inch x 1-1/2 inch x 1/2 inch tee with three separate press joints, that is three chances to miss one, which is exactly where the feature pays off.
5) Can I use this stainless MegaPress tee to pick up a 1/2 inch gauge or drain branch off a 1-1/2 inch line?
That is what the reduction is for. The run stays full 1-1/2 inch and the 1/2 inch press branch takes a small takeoff, which is the usual way to pick up a gauge, sensor, drain, or a small fixture drop without reducing the main. The branch is a press end, so you will need a 1/2 inch press-to-thread adapter if the device itself is threaded.
6) Will the 90145 work on stainless pipe in a food or healthcare facility?
The body is 316 stainless, which is the grade specified for wash-down, coastal, and chemically aggressive service, and it is the material facilities standardize on when they do not want carbon steel in the wall. For procurement records, the fitting is made in Germany and carries manufacturer part number 90145.
7) How do I order the exact Viega stainless press tee in 1-1/2 x 1-1/2 x 1/2?
Order by Viega part number 90145. It is the 316 stainless MegaPress tee in 1-1/2 inch x 1-1/2 inch x 1/2 inch with press ends throughout, and it ships as a single fitting weighing 1.549 lbs. Distributors should note the adjacent sizes in the same family differ only by branch size, so the part number is the only safe way to pin the reduction.
