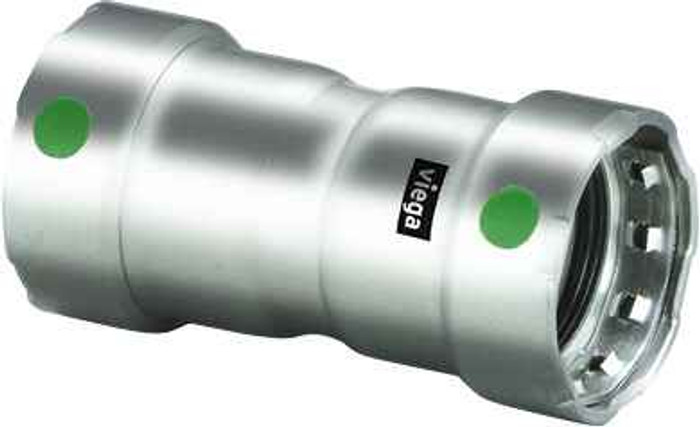

90305 Viega MegaPress coupling With stop Smart Connect technology 316 stainless steel, 2'' x 2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 2'' x 2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Couplings
- Product Type:
- Coupling
- Product Length:
- 4.819"
- Product Height:
- 2.894"
- Product Weight:
- 1.267 lbs
- Product Width:
- 2.894"
- Product Material:
- 316 stainless steel
Viega 90305 – Frequently Asked Questions
1) What pipe size does the Viega MegaPress 90305 coupling join?
The Viega 90305 MegaPress coupling is a 2 inch by 2 inch fitting, so it joins two runs of 2 inch pipe. Both ends are press connections (P1 x P2), and it is a coupling with stop, meaning the pipe bottoms out against an internal shoulder on each side rather than sliding through.
2) Do I need a coupling with stop or without stop for a repair in an existing 2 inch line?
A coupling with stop, like the Viega 90305, has an internal shoulder that sets insertion depth on each side. That is what you want for new runs where you can bring a pipe end to the fitting. For a cut-in repair in a fixed line, where neither pipe end can move, you need a coupling without stop so it can be slid along the pipe to span the cut.
3) Is the Viega 90305 MegaPress coupling stainless or carbon steel?
It is 316 stainless steel, body and all. That is the corrosion-resistant grade Viega uses for its stainless MegaPress line, so it suits wetter or more aggressive service than a carbon steel press coupling. The fitting is made in Germany.
4) What is Smart Connect on this Viega press coupling, and why does it matter on the job?
Smart Connect is Viega's unpressed-connection feature: an unpressed fitting deliberately leaks during pressure testing so the installer can find the joint that was missed before the system is closed up. On a 2 inch stainless line with multiple joints, that is the difference between catching a miss at test and chasing it after drywall.
