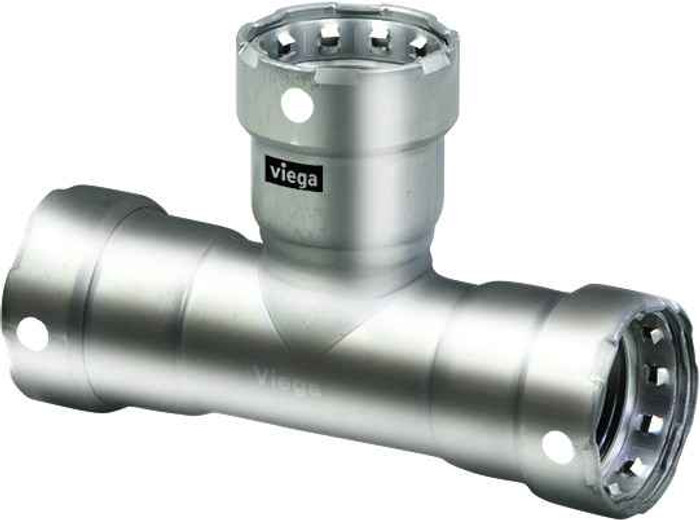

91680 Viega MegaPress tee Smart Connect technology 316 stainless steel, 2'' x 2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 2'' x 2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.646"
- Product Height:
- 2.894"
- Product Weight:
- 2.078 lbs
- Product Width:
- 4.382"
- Product Material:
- 316 stainless steel
Viega 91680 – Frequently Asked Questions
1) What size pipe does the Viega 91680 MegaPress tee fit?
The Viega MegaPress tee, model 91680, is a 2 inch x 2 inch x 3/4 inch reducing tee. The run is 2 inch on both ends and the branch presses onto 3/4 inch pipe, so you can take a 3/4 inch branch off a 2 inch main without a separate reducer.
2) Are all three connections on the Viega 91680 tee press ends, or is one threaded?
All three are press. The connection type is listed as P1 x P2 x P3, meaning press on the two 2 inch run ends and press on the 3/4 inch branch. There is no thread or solder joint anywhere on the fitting, so the whole assembly is made with a press tool and jaws sized for each outlet.
3) Is the Viega 91680 MegaPress tee stainless or carbon steel?
It is 316 stainless steel, not carbon. That matters on two counts: 316 holds up far better in damp mechanical rooms, wash-down areas, and coastal or chemically aggressive environments than a carbon steel press fitting, and it is the body material to specify where a job calls for corrosion-resistant fittings on steel pipe.
4) What is Smart Connect on the Viega MegaPress 91680 tee and why does it matter on an install?
Smart Connect is the feature built into the sealing element of this MegaPress tee that leaves an unpressed connection deliberately leaking during pressure test. On a run with dozens of joints, that is how you find the one the crew missed before the ceiling closes, rather than after.
5) How much clearance do I need around the 2 x 2 x 3/4 MegaPress tee to get a press tool on it?
Plan your rough-in around a body that measures 7.646 inches long, 4.382 inches wide, and 2.894 inches high, then add room for the jaw. The 2 inch run jaws are bulky, so tight-to-wall or tight-to-joist layouts need to be checked before the pipe is cut. Fitting weight is 2.078 lbs.
6) Can I use the Viega 91680 press tee instead of welding or threading a 3/4 inch branch into a 2 inch steel main?
That is exactly what it is for. A pressed branch off a 2 inch line takes seconds per joint with no hot work permit, no fire watch, and no draining and re-cutting threads. For an occupied building, a hospital corridor, or a tenant space where a torch is not allowed, the press tee is the way to get the 3/4 inch takeoff in.
7) Does the Viega 91680 tee come with the sealing element installed, or do I order that separately?
The sealing element is factory-installed in all three press sockets of the 91680 tee; you press it as it comes out of the box. What is not included is the tooling. You need a press tool with jaws for 2 inch and for 3/4 inch, plus a pipe cutter and deburring tool, to complete the joint.
8) Where is the Viega MegaPress 91680 tee made, and is there a part number I can hand to a spec writer?
Manufactured in Germany. Order it by Viega part number 91680, described as a MegaPress 316 stainless tee, 2 inch x 2 inch x 3/4 inch. That is the number to put on a submittal or a counter order.
