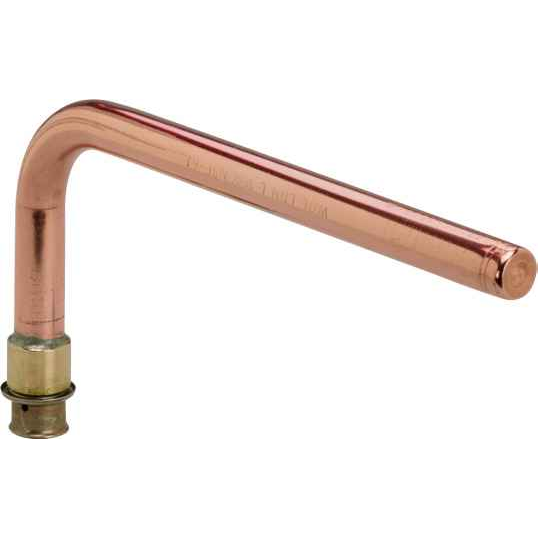

92441 Viega PureFlow Press 90° stub-out Brazed copper, 3/4'' x 3/4'', 3-1/2'' x 8''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FTG, L1 (in) x L2 (in)
- Country Of Origin:
- Made In USA
- Material Type:
- Brazed Copper
- Product Dimension:
- 3/4'' x 3/4'', 3-1/2'' x 8''
- Department:
- Plumbing
- Product Group:
- Plumbing
- Product Subgroup:
- Other Fittings
- Product Type:
- Fitting
- Product Length:
- 1.179"
- Product Height:
- 4.78"
- Product Weight:
- 0.534 lbs
- Product Width:
- 8.591"
Viega 92441 – Frequently Asked Questions
1) What size PEX and copper does the Viega 92441 stub-out connect to?
The Viega 92441 PureFlow stub-out ell is a 3/4 inch press connection on one end and a 3/4 inch FTG (fitting) end on the other, so it presses onto 3/4 inch PEX tubing and the FTG leg slips into a 3/4 inch copper fitting socket. Both ends are 3/4 inch, so there is no reducing built into this part.
2) How far does the Viega 92441 stub-out extend out of the wall?
The two legs measure 3-1/2 inches and 8 inches. The 8 inch leg is the long run that anchors back in the stud bay and the 3-1/2 inch leg is the short one, which is what gives you the stub through the finished wall for a supply stop. If your rough-in needs more projection than that, this is not the part to use.
3) Can I solder the Viega 92441 stub-out instead of pressing it?
Only on one end. The FTG leg is a copper fitting end that can be joined to copper the way any copper socket joint is made. The other end is a Viega PureFlow press connection for PEX and is made with a press tool, not a torch. Never heat the press end.
