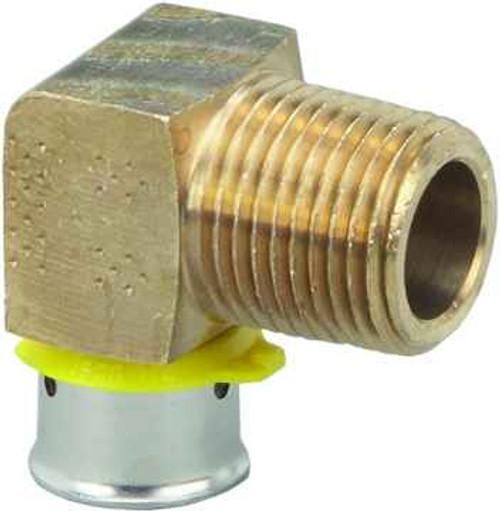

93520 Viega PureFlow Press 90° elbow Zero Lead Bronze, 1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- Bronze
- Product Dimension:
- 1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 0.898"
- Product Height:
- 1.39"
- Product Weight:
- 0.086 lbs
- Product Width:
- 1.39"
- Product Material:
- Bronze
Viega 93520 – Frequently Asked Questions
1) Is the Viega 93520 elbow a press fitting on both ends, or does one side thread?
Both ends are press. The 93520 is listed with a P1 x P2 connection, meaning press by press, 1/2 inch on each side. There is no threaded or sweat end on it, so you need a press tool with the correct 1/2 inch PureFlow jaw to make up both joints.
2) Can I use the Viega 93520 PureFlow elbow on potable drinking water lines?
Yes. The 93520 is a zero lead bronze PureFlow press elbow, which is the bronze alloy Viega uses for potable hot and cold water service. Material is bronze through the body.
3) Is this 1/2 inch press elbow for PEX or for copper tube?
PureFlow is Viega's PEX system, so the 93520 is a 90 degree elbow for 1/2 inch PEX tubing pressed with PureFlow press sleeves. It is not a copper press (ProPress) fitting and should not be pressed onto copper tube.
4) How much room do I need behind a wall or in a joist bay for the Viega 93520 elbow?
It is a compact body: 1.39 inches high by 1.39 inches wide, with a 0.898 inch length figure. That footprint fits a standard 2x4 stud bay turn without furring, but allow extra clearance for the press tool jaw to close squarely on each sleeve, which is usually the limiting factor rather than the fitting itself.
5) Why choose a bronze PureFlow elbow instead of a poly one for a multifamily repipe?
Bronze gives you a rigid metal body at the turn, which holds dimension in tight chases and resists handling damage on a rough-in that gets bumped before close-up. The 93520 is zero lead bronze, so it is suitable for potable lines, and at 0.086 lbs it adds almost nothing to the pipe run's support load.
6) What is the exact Viega part number and UPC for the 1/2 inch PureFlow bronze 90 elbow?
Manufacturer part number 93520, UPC 691514935201, made in Germany. That is the number to quote if you are standardizing a job or restocking a van.
