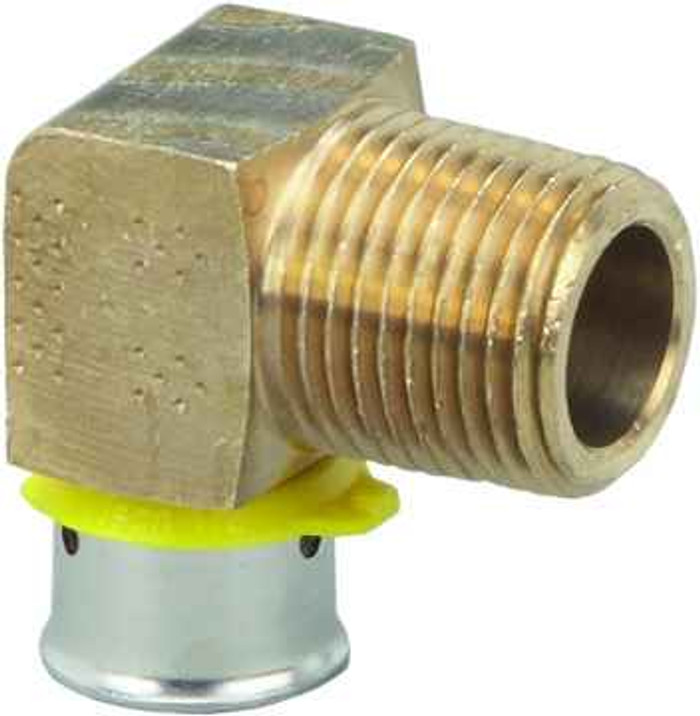

92525 Viega PureFlow Press 90° elbow Zero Lead Bronze, 1/2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P x MPT
- Material Type:
- Bronze
- Product Dimension:
- 1/2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 1.094"
- Product Height:
- 1.551"
- Product Weight:
- 0.315 lbs
- Product Width:
- 1.783"
- Product Material:
- Bronze
Viega 92525 – Frequently Asked Questions
1) What do the 1/2 inch and 3/4 inch sizes on the Viega 92525 PureFlow elbow actually connect to?
The Viega 92525 is a P x MPT elbow: one end is a 1/2 inch PureFlow press connection for PEX tubing, the other is a 3/4 inch male pipe thread. So it takes 1/2 inch PEX on the press side and threads into a 3/4 inch female NPT port, valve, or threaded fitting on the other. If you need PEX on both ends, this is the wrong fitting, you want a press x press elbow.
2) Do I need a crimp tool or a press tool for the Viega 92525 PureFlow fitting?
This is a PureFlow Press fitting, so it is pressed, not crimped. You need a Viega press tool with the correct PEX press jaw for 1/2 inch. Copper crimp rings and a crimp tool will not make this joint, and neither will a cinch clamp tool.
3) Is the Viega 92525 press elbow lead free for potable water?
It is a zero lead bronze body, which is what Viega uses for potable water PureFlow fittings. The casting is bronze throughout.
4) How much space does the Viega 92525 90 degree elbow take up in a tight wall cavity?
The fitting measures 1.783 x 1.551 x 1.094 inches and weighs 0.315 lbs. That is a compact body, but remember the press end needs clearance for the jaw of the press tool to close fully around it, so plan more room than the fitting dimensions alone suggest when you are roughing in behind drywall or inside a stud bay.
5) Can I thread the 3/4 inch end of this Viega elbow straight into a brass valve?
Yes, the 3/4 inch end is a male pipe thread and will thread into any 3/4 inch female NPT port, including brass stop valves, manifolds, and tank fittings. Use a thread sealant or PTFE tape rated for potable water on the threads. The press side stays dry and unsealed, the seal there is made by the press.
