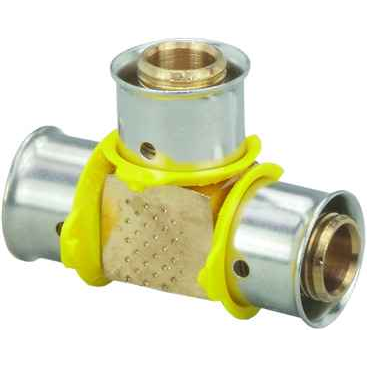

94032 Viega PureFlow Press tee Zero Lead Bronze, 3/4'' x 1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Bronze
- Product Dimension:
- 3/4'' x 1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 1.126"
- Product Height:
- 1.669"
- Product Weight:
- 0.177 lbs
- Product Width:
- 2.181"
- Product Material:
- Bronze
Viega 94032 – Frequently Asked Questions
1) What size runs and branch does the Viega 94032 PureFlow press tee take?
The Viega 94032 PureFlow tee is a 3/4 inch x 1/2 inch x 1/2 inch reducing tee, so the run is 3/4 inch and the branch reduces to 1/2 inch. It's the fitting to use where you're dropping off a 3/4 inch main to a 1/2 inch fixture branch and also reducing the continuing run to 1/2 inch. If you need to keep the run at 3/4 inch past the branch, this is the wrong configuration.
2) Are all three ends of the Viega 94032 tee press connections, or is one of them threaded?
All three ports are press. The connection type is listed as P1 x P2 x P3, meaning press on every end, so the fitting goes in with a press tool and jaws sized to each port (3/4 inch on the run, 1/2 inch on the two smaller ends). There is no threaded or sweat end on it, so plan an adapter fitting if you need to transition to threads.
3) Is the PureFlow press tee for PEX or for copper tubing?
PureFlow is Viega's PEX system, so the 94032 bronze press tee is a PEX fitting pressed onto PEX tubing with sleeves, not a copper press fitting. If you're working in copper, you want Viega's ProPress line instead, not PureFlow.
4) Is the Viega 94032 tee lead free for potable water?
It's a zero lead bronze fitting, which is how Viega designates its PureFlow bronze press fittings for potable water service. The body material is bronze rather than brass or copper.
5) Will the Viega 94032 tee fit in a tight joist bay or stud cavity?
It's a compact fitting: 2.181 inches wide, 1.669 inches high, 1.126 inches long, and 0.177 lbs. The thing that usually decides tight work isn't the fitting, it's clearance for the press jaws around each of the three ports, so lay out the branch with jaw swing in mind before you cut the tubing.
6) Do I need to buy press sleeves separately for the Viega 94032 tee?
Yes. The 94032 is the bronze tee body only, with three press ports, so you'll need the correct PureFlow press sleeves for each connection, 3/4 inch for the run and 1/2 inch for the two branch ends, plus a press tool with matching jaws.
