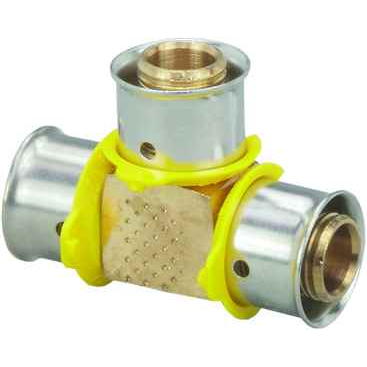

94052 Viega PureFlow Press tee Zero Lead Bronze, 1'' x 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Bronze
- Product Dimension:
- 1'' x 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 1.417"
- Product Height:
- 2.008"
- Product Weight:
- 0.22 lbs
- Product Width:
- 2.559"
- Product Material:
- Bronze
Viega 94052 – Frequently Asked Questions
1) What size runs and branch does the Viega 94052 PureFlow tee take?
The Viega 94052 is a reducing press tee sized 1 inch x 3/4 inch x 3/4 inch, so the run goes 1 inch in and 3/4 inch out, with a 3/4 inch branch. It's the fitting you use where a 1 inch trunk line steps down to 3/4 inch and you need to pull a 3/4 inch branch off at the same point.
2) Is the Viega 94052 tee a PEX press fitting or a copper press fitting?
It's a PEX fitting. The 94052 is part of Viega's PureFlow line and all three ports are press connections for PEX tubing (P1 x P2 x P3), made up with a Viega PureFlow press tool and jaws. It is not a ProPress copper fitting and will not press onto copper tube.
3) Is the Viega 94052 bronze tee safe for potable water lines?
Yes. The 94052 is a zero lead bronze body, which is what makes it acceptable for domestic hot and cold potable water distribution. Bronze also gives you more wall strength than a poly insert fitting where the tee sits in a wall cavity or gets handled during rough-in.
4) How much room do I need in the wall cavity for the Viega 94052 tee?
The fitting measures 2.559 inches wide, 2.008 inches high and 1.417 inches long, so figure roughly two and a half inches of clear space across the branch axis plus your press jaw swing. In a 2x4 stud bay that's fine on the flat, but plan the jaw approach before you press, since the tool needs a straight shot at each port.
5) Do I need anything besides the tee to make up the connection?
The 94052 presses directly onto PEX tubing with no separate nuts, rings or inserts to buy. What you do need on the job is the Viega PureFlow press tool with the correct 1 inch and 3/4 inch jaws, plus the press rings the PureFlow system calls for at each port. No solder, no solvent, no threading.
