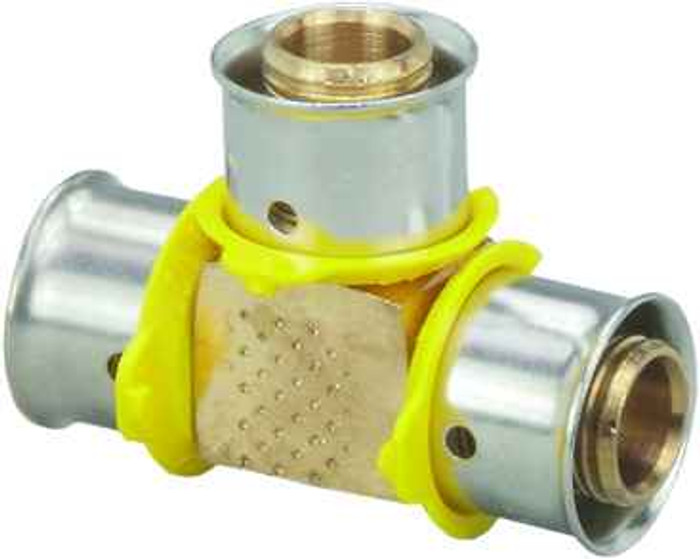

94053 Viega PureFlow Press tee Zero Lead Bronze, 1'' x 3/4'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Bronze
- Product Dimension:
- 1'' x 3/4'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 1.417"
- Product Height:
- 2.205"
- Product Weight:
- 0.242 lbs
- Product Width:
- 2.579"
- Product Material:
- Bronze
Viega 94053 – Frequently Asked Questions
1) What pipe sizes does the Viega 94053 PureFlow press tee connect?
The Viega 94053 is a reducing tee sized 1 inch x 3/4 inch x 1 inch, so the run is 1 inch on both ends with a 3/4 inch branch outlet. Use it where you are running a 1 inch main and taking a 3/4 inch branch off it without dropping the main size.
2) Are all three ends of the Viega 94053 tee press connections, or is one threaded?
All three are press. The connection type is P1 x P2 x P3, meaning press on every outlet, so the fitting is made up with a press tool and jaws sized for each port. There is no threaded or sweat end on it.
3) Is the Viega 94053 tee a lead-free bronze fitting suitable for potable water?
It is a Zero Lead bronze PureFlow press tee, made of bronze and marketed as zero lead for potable water service. Bronze holds up better than plastic at the fitting body where a branch takes mechanical stress.
4) How much room do I need around the Viega 94053 press tee to get the tool jaws on it?
The fitting body itself measures 2.579 inches wide, 2.205 inches high and 1.417 inches long. Add the swing radius of your press jaws on top of that when you are working in a joist bay or a tight wall cavity, since each of the three ports has to be pressed separately.
5) Can I use a 1 x 3/4 x 1 tee instead of a full-size 1 inch tee with a reducer bushing?
Yes, and it is the cleaner way to do it. The 94053 already reduces the branch to 3/4 inch inside the bronze body, so you press once at the branch instead of adding a coupling or bushing and a second press joint. Fewer joints in a wall is less to fail and less labor.
6) Where is the Viega 94053 PureFlow tee manufactured?
Made in Germany. That matters on spec jobs where the submittal package or a domestic-preference clause requires country of origin to be documented for each fitting.
