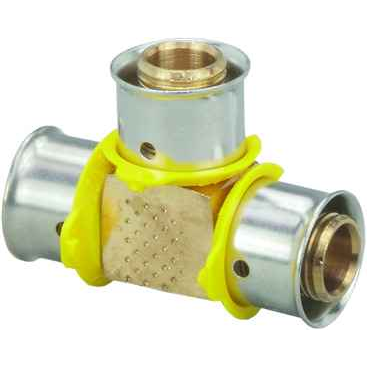

94034 Viega PureFlow Press tee Zero Lead Bronze, 3/4'' x 1/2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Bronze
- Product Dimension:
- 3/4'' x 1/2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 1.126"
- Product Height:
- 1.642"
- Product Weight:
- 0.177 lbs
- Product Width:
- 2.181"
- Product Material:
- Bronze
Viega 94034 – Frequently Asked Questions
1) What size runs and branch does the Viega 94034 PureFlow press tee take?
The Viega 94034 is a reducing press tee sized 3/4 inch x 1/2 inch x 3/4 inch, so the run stays 3/4 inch straight through and the branch drops to 1/2 inch. Typical use is teeing a 1/2 inch fixture drop off a 3/4 inch PEX trunk line without adding a separate reducing coupling.
2) Are all three ends of the Viega 94034 tee press connections, or is one threaded?
All three ends are press. The connection type is listed P1 x P2 x P3, meaning every port is a PureFlow press socket for PEX tubing, crimped with a Viega press tool and jaw. There is no threaded or sweat end on this fitting, so if you need a transition to threaded pipe you want a separate press x FPT or MPT adapter.
3) Is the Viega 94034 press tee lead free for potable drinking water?
It is a Zero Lead bronze PureFlow press tee, built for potable water distribution. Bronze body construction also makes it a reasonable pick where a polymer fitting would not hold up, such as tight mechanical rooms or repeated remodel work on the same branch.
4) How much space does a Viega 94034 tee need in a stud bay or behind a wall?
Overall the fitting measures 1.642 inches high, 1.126 inches long and 2.181 inches wide, and weighs 0.177 lbs. That footprint clears a standard 2x4 bay easily, but remember to add tool clearance for the press jaw around each of the three sockets, which is usually what decides whether you can press it in place or have to assemble the assembly on the bench first.
5) What is the Viega part number and manufacturer for this 3/4 x 1/2 x 3/4 PureFlow press tee?
It is Viega part number 94034, from the PureFlow press line, made in Germany. Order by that number if you are standardizing a job or restocking a truck, since the adjacent PureFlow tees differ only by port sizing.
